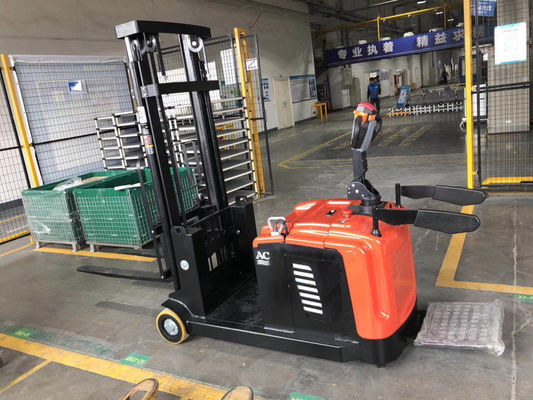

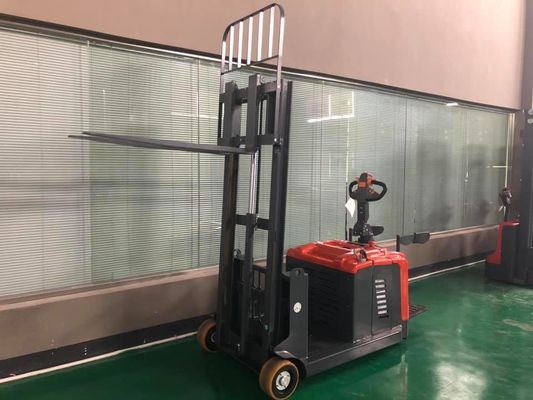

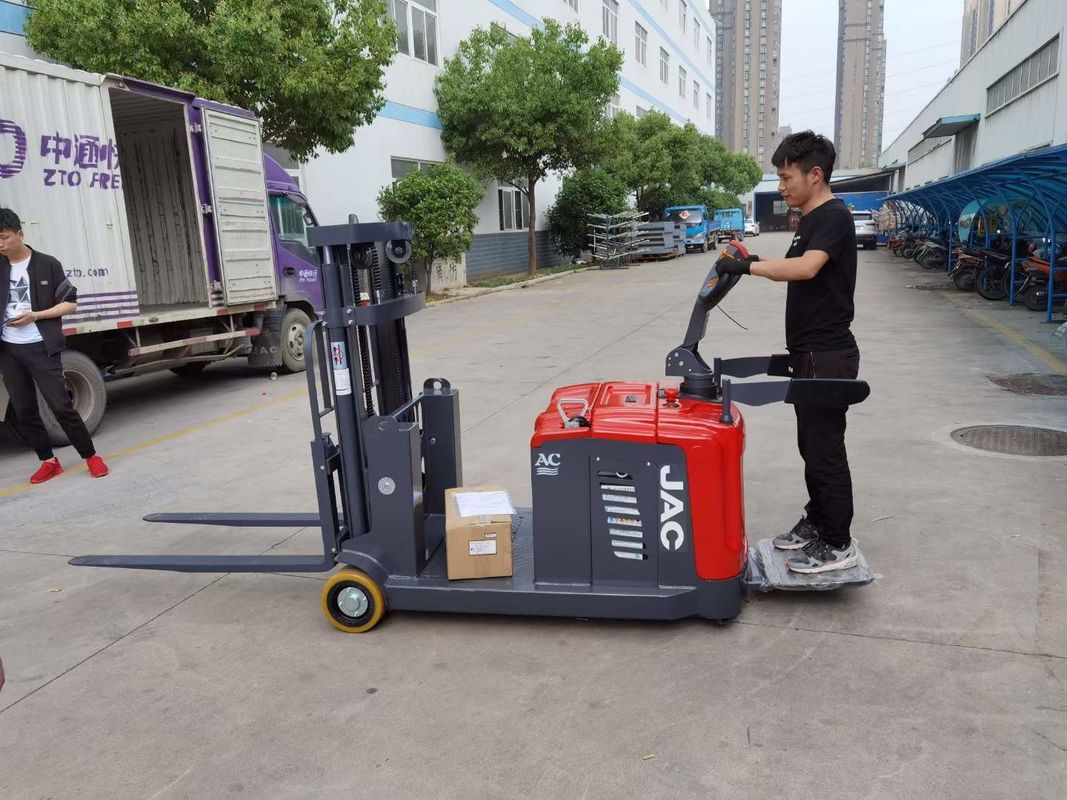

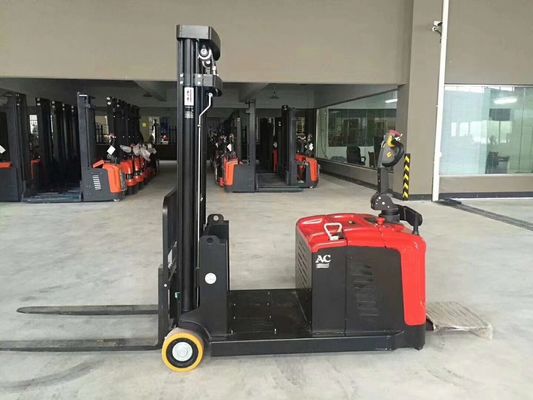

Product Details:
|
| Rated Traction Weight: | 1500kg | Power: | Electric |
|---|---|---|---|
| Wheels Type: | PU | Lifting Height: | 3000mm |
| Min.Turning Radius: | 1565mm | Drive Motor: | 2.5KW |
| Fork Dimensions: | 35/100/1070mm | Battery Voltage: | 24V |
| Battery Rated Capacity: | 270Ah | ||
| Highlight: | forklift walkie straddle stackers,1500kg walkie straddle stackers,1500kg forklift pallet stacker |
||
| Model | CDD15 | |
| Power unit | electric | |
| Operation | stand | |
| Rated traction weight | Kg | 1500 |
| Service weight with battery | Kg | 1730 |
| Rated traction weight | mm | 500 |
| Axle centre to fork face | mm | 150 |
| Wheel base | mm | 1316 |
| Wheels type | polyurethane | |
| Bearing wheel size | 250x120,2个 | |
| Driving wheel size | 250x75,1个 | |
| Lift | mm | 3000 |
| Free lift | mm | 135 |
| Height of mast, lowered | mm | 1995 |
| Height of mast, extended | mm | 3949 |
| Overall length(fork 1070mm) | mm | 2657/3070 |
| Overall width | mm | 998 |
| Fork dimensions | s/e/l(mm) | 35/100/1070 |
| Width of forks | mm | 220-720 |
| Min.Ground clearance | mm | 86 |
| Aisle width with pallet 1000 x 1200 across forks | Ast(mm) | 3029 |
| Aisle width with pallet 800 x 1200 along forks | Ast(mm) | 3137 |
| Min.Turning radius | mm | 1565 |
| Maximum climbing ability, with/without load | % | 6/10 |
| Travel speed,laden/unladen | km/h | 5.0/5.2 |
| Lifting speed, with/without load | mm/s | 100/140 |
| Lowering speed, with/without load | mm/s) | 136/120 |
| Drive motor | V/kw | 24/2.5 |
| Lift motor | V/kw | 24/3.0 |
| Battery voltage/rated capacity | V/AH | 24/270 |
