Product Details:
|
| Rated Traction Weight: | 1500kg | Power: | Electric |
|---|---|---|---|
| Battery: | Lead-acid Battery | Lowered Hength: | 86mm |
| Load Centre: | 600mm | Wheels Type: | PU |
| Lifting Height: | 3000/3600/4000/4500/5000mm | Min.Turning Radius: | 1550mm |
| Width Of Forks: | 570/695mm | Fork Dimensions: | 60/180/1150mm |
| Battery Voltage: | 24V | Battery Rated Capacity: | 210Ah |
| Highlight: | 2Stage Electric Pallet Stacker,1.5T Electric Pallet Stacker,1.5T platform pallet truck |
||

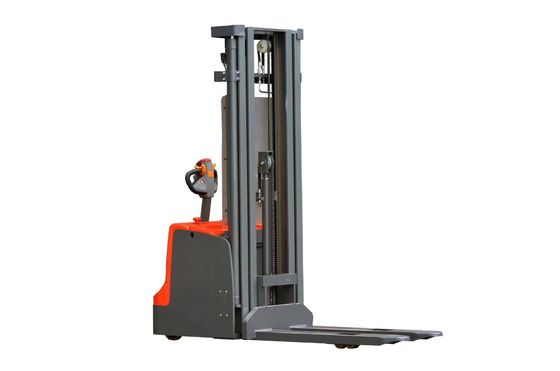

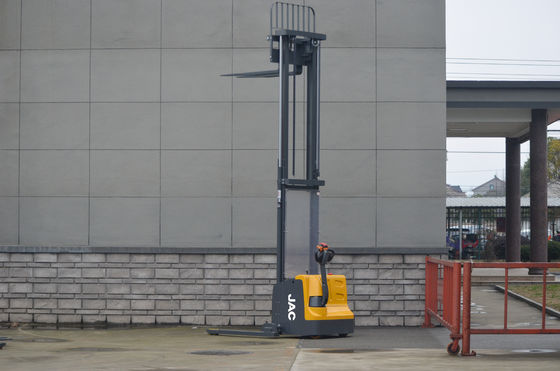

2 Stage Mast Platform Electric Pallet Stacker Truck 1.5T
| Characteristics | 1.1 | Manufacturer | JAC | ||||
| 1.2 | Model | CDD15 | CDD15 | CDD15 | CDD15 | ||
| 1.3 | Power unit | Electric | Electric | Electric | Electric | ||
| 1.4 | Operation | Walking | Walking | Walking | Walking | ||
| 1.5 | Rated traction weight | kg | 1500 | 1500 | 1500 | 1500 | |
| 1.6 | Load centre | mm | 600 | 600 | 600 | 600 | |
| 1.7 | Axle centre to fork face | mm | 672 | 672 | 672 | 672 | |
| 1.8 | Wheel base | mm | 1384 | 1384 | 1384 | 1384 | |
| Weights | 2.1 | Service weight with battery | kg | 966 | 1001 | 1068 | 1126 |
| Wheels/Tyres | 3.1 | Wheels type | PU | PU | PU | PU | |
| 3.2 | Driving wheel size | Φ×w(mm) | Φ230×70 | Φ230×70 | Φ230×70 | Φ230×70 | |
| 3.3 | Bearing wheel size | Φ×w(mm) | Φ80×70 | Φ80×70 | Φ80×70 | Φ80×70 | |
| 3.4 | additional wheels(dimensions) | Φ×w(mm) | Φ150×58 | Φ150×58 | Φ150×58 | Φ150×58 | |
| 3.5 | Wheels, number front/rear (x = driven) | 1x+1/4 | 1x+1/4 | 1x+1/4 | 1x+1/4 | ||
| 3.6 | Track width | mm | 526 | 526 | 526 | 526 | |
| 3.7 | Track width | mm | 390/515 | 390/515 | 390/515 | 390/515 | |
| Dimensions | 4.1 | Height of mast, lowered | mm | 1991 | 2291 | 1767 | 2100 |
| 4.2 | Free lift | mm | 166 | 166 | 1331 | 1686 | |
| 4.3 | Lift | mm | 3000 (2-Stage Mast) |
3600 (2-Stage Mast) |
3600 (3-Stage Full Free Mast ) |
4500 (3-Stage Full Free Mast ) |
|
| 4.4 | The max. lifting height(mm) | kg | 1300 | 1100 | 1100 | 750 | |
| 4.5 | Height of mast, extended | mm | 3408 | 4008 | 4024 | 5024 | |
| 4.6 | Overall height(With handle | mm | 870/1200 | 870/1200 | 870/1200 | 870/1200 | |
| 4.7 | Lowered fork height | mm | 86 | 86 | 86 | 86 | |
| 4.8 | Overall length | mm | 2022 | 2022 | 2022 | 2022 | |
| 4.9 | Length to fork face | mm | 872 | 872 | 872 | 872 | |
| 4.10 | Overall width | mm | 795 | 795 | 795 | 795 | |
| 4.11 | Fork dimensions | s/e/l (mm) | 60/180/1150 | 60/180/1150 | 60/180/1150 | 60/180/1150 | |
| 4.12 | Width of forks | mm | 570/695 | 570/695 | 570/695 | 570/695 | |
| 4.13 | Min.Ground clearance | mm | 26 | 26 | 26 | 26 | |
| 4.14 | Aisle width with pallet 1000 x 1200 across forks | mm | 2435 | 2435 | 2435 | 2435 | |
| 4.15 | Aisle width with pallet 800 x 1200 along forks | mm | 2412 | 2412 | 2412 | 2412 | |
| 4.16 | Min.Turning radius | mm | 1550 | 1550 | 1550 | 1550 | |
| Performance | 5.1 | Travel speed,laden/unladen | km/h | 4.0/4.2 | 4.0/4.2 | 4.0/4.2 | 4.0/4.2 |
| 5.2 | Lifting speed, with/without load | mm/s | 80/210 | 80/210 | 80/210 | 80/210 | |
| 5.3 | Lowering speed, with/without load | mm/s | 152/160 | 152/160 | 152/160 | 152/160 | |
| 5.4 | Maximum climbing ability, with/without load | % | 6/8 | 6/8 | 6/8 | 6/8 | |
| 5.5 | Service brake | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | ||
| Drive | 6.1 | Drive motor, 60 minute rating | kW | 1.5 | 1.5 | 1.5 | 1.5 |
| 6.2 | Lift motor rating at S3 15% | kW | 3.0 | 3.0 | 3.0 | 3.0 | |
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | no | no | no | no | ||
| 6.4 | Battery voltage/rated capacity | V/Ah | 24/210 | 24/210 | 24/210 | 24/210 | |
| 6.5 | Battery weight (± 5%) | kg | 195 | 195 | 195 | 195 | |
| Others | 7.1 | Type of drive control | AC | AC | AC | AC | |
| 7.2 | Noise level at operator‘s ear | dB(A) | 70 | 70 | 70 | 70 | |
| 7.3 | Steering type | Mechanical | Mechanical | Mechanical | Mechanical | ||
