Product Details:
|
| Rated Traction Weight: | 500kg | Power: | Electric |
|---|---|---|---|
| Wheels Type: | PU | Lifting Height: | 3000mm |
| Min.Turning Radius: | 905mm | Drive Motor: | 0.75KW |
| Fork Dimensions: | 35/100/820mm | Battery Voltage: | 24V |
| Battery Rated Capacity: | 2*12/100Ah | ||
| Highlight: | counterbalanced Electric Pallet Stacker,500kg Electric Pallet Stacker,Counterbalanced order puller warehouse |
||

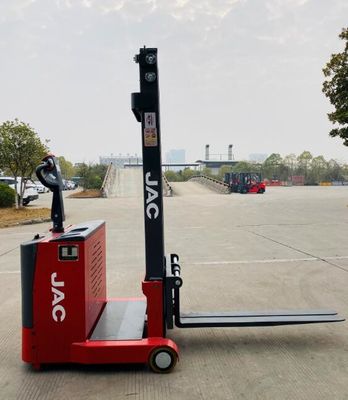

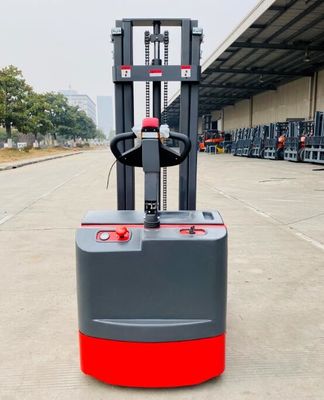

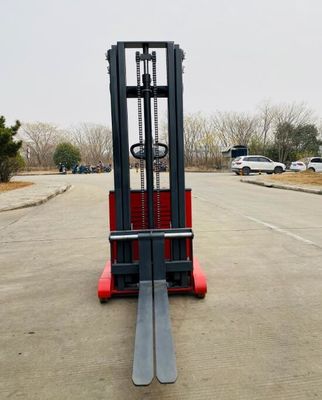

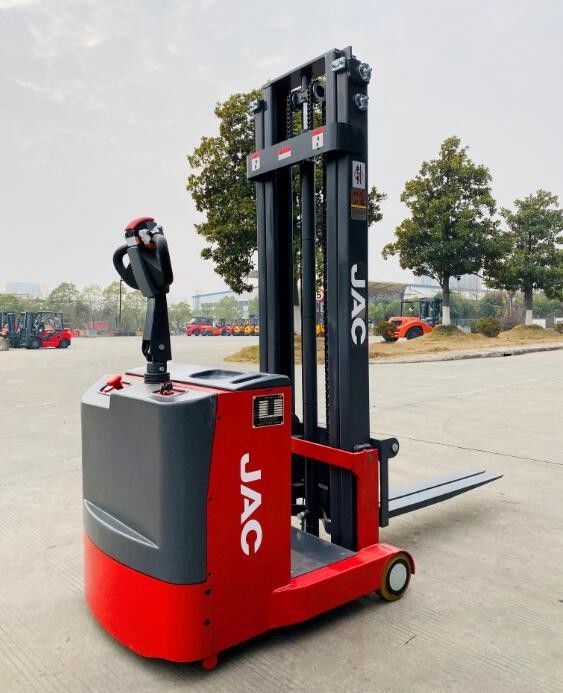

| Characteristics | Manufacturer | JAC | |
| Model | CDD05 | ||
| Power unit | electric | ||
| Operation | pedestrian | ||
| Rated traction weight | kg | 500 | |
| Load centre | mm | 400 | |
| Axle centre to fork face | mm | 104 | |
| Wheel base | mm | 707 | |
| Weights | Service weight with battery | kg | 990 |
| Wheels/Tyres | Wheels type | polyurethane | |
| Driving wheel size | Φ×w(mm) | Φ210×170 | |
| Bearing wheel size | Φ×w(mm) | Φ178×73 | |
| Wheels, number front/rear (x = driven) | 1,2 | ||
| Track width | mm | 733 | |
| Dimensions | Height of mast, lowered | mm | 2060 |
| Free lift | mm | 0 | |
| Lift | mm | 3000 | |
| Height of mast, extended | mm | 3550 | |
| Overall height(With handle | mm | 1075/1502 | |
| Fork Height,Lowered | mm | 40 | |
| Overall length | mm | 1829 | |
| Length to fork face | mm | 1009 | |
| Overall width | mm | 878 | |
| Fork dimensions | mm | 35/100/820 | |
| Width of forks | mm | 210-550 | |
| Distance Between Suporrts arms/loading surfaces | mm | 596 | |
| Min.Ground clearance | mm | 75 | |
| Aisle width with pallet 1000 x 1200 across forks | mm | 2365 | |
| Aisle width with pallet 800 x 1200 along forks | mm | 2474 | |
| Min.Turning radius | mm | 905 | |
| Performance | Travel speed,laden/unladen | km/h | 4.0/4.2 |
| Lifting speed, with/without load | mm/s | 120/130 | |
| Lowering speed, with/without load | mm/s | 130/115 | |
| Maximum climbing ability, with/without load | % | 3/5 | |
| Service brake | electromagnetic | ||
| Drive | Drive motor | kW | 0.75 |
| Lift motor | kW | 2.2 | |
| Battery according to DIN 43531/35/36 A,B,C,no | no | ||
| Battery voltage/rated capacity | V/Ah | 2×12/100 | |
| Battery weight (± 5%) | kg | 2×27 | |
| Others | Type of drive control | DC | |
| Noise level at operator‘s ear | dB(A) | ＜75 |
