Product Details:
|
| Rated Traction Weight: | 2000kg | Power: | Electric |
|---|---|---|---|
| Battery: | Lead-acid Battery | Lowered Hength: | 85mm |
| Load Centre: | 600mm | Wheels Type: | PU |
| Lift: | 200mm | Min.Turning Radius: | 1556mm |
| Width Of Forks: | 550/685mm | Fork Dimensions: | 50/160/1150mm |
| Battery Voltage: | 24V | Battery Rated Capacity: | 210Ah |
| Highlight: | Walkie Electric Pallet Truck,2000kg Electric Pallet Truck,Walkie heavy duty electric pallet jack |
||

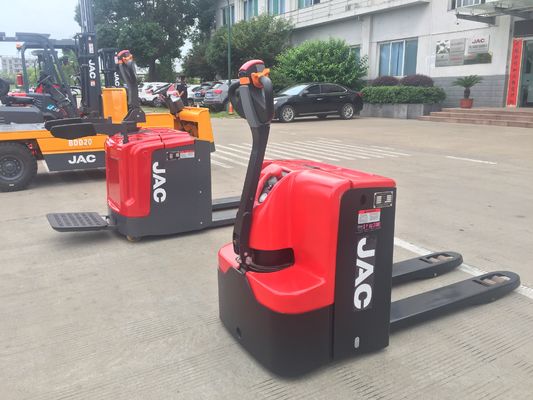

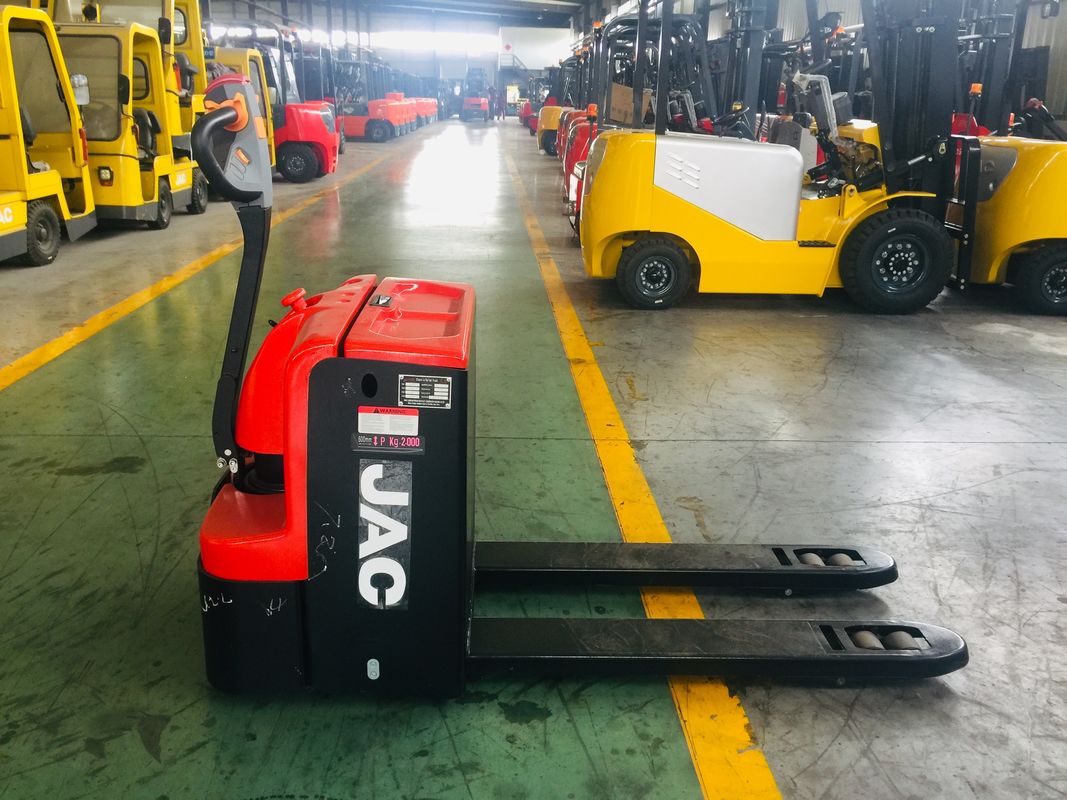

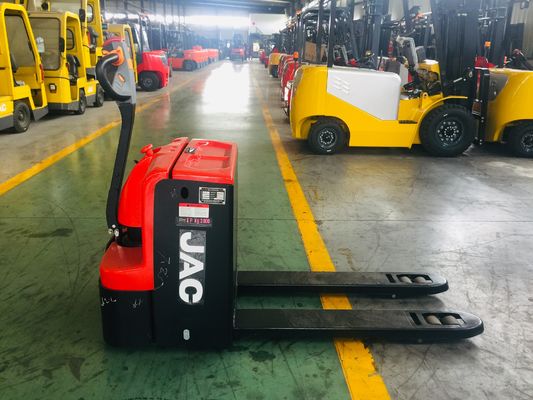

Heavy Duty Walkie Electric Pallet Truck Jack 2000kg
| Characteristics | 1.1 | Manufacturer | JAC | |
| 1.2 | Model | CBD20 | ||
| 1.3 | Power unit | Electric | ||
| 1.4 | Operation | Walkie | ||
| 1.5 | Rated traction weight | Q (t) | 2.0 | |
| 1.6 | Load centre | c (mm) | 600 | |
| 1.7 | Axle centre to fork face | x (mm) | 920 | |
| 1.8 | Wheel base | y (mm) | 1348 | |
| Weights | 2.1 | Service weight with battery | kg | 520 |
| Wheels/Tyres | 3.1 | Wheels type | Polyurethane | |
| 3.2 | Driving wheel size | Φ×w(mm) | Φ230×70 | |
| 3.3 | Bearing wheel size | Φ×w(mm) | Φ80×70 | |
| 3.4 | additional wheels(dimensions) | Φ×w(mm) | Φ100×40 | |
| 3.5 | Wheels, number front/rear (x = driven) | 1x+2/4 | ||
| 3.6 | Track width | b11 (mm) | 380/525 | |
| Dimensions | 4.1 | Lift | h3 (mm) | 200 |
| 4.2 | Overall height(With handle | h14 (mm) | 825/1278 | |
| 4.3 | lowered hength | h13 (mm) | 85 | |
| 4.4 | Overall length | l1 (mm) | 1742 | |
| 4.5 | Length to fork face | l2 (mm) | 592 | |
| 4.6 | Overall width | b1/ b2 (mm) | 720 | |
| 4.7 | Fork dimensions | s/e/l (mm) | 50/150/1150 | |
| 4.8 | Width of forks | b5 (mm) | 540/685 | |
| 4.9 | Min.Ground clearance | m2 (mm) | 35 | |
| 4.10 | Aisle width with pallet 1000 x 1200 across forks | Ast (mm) | 1962 | |
| 4.11 | Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 2012 | |
| 4.12 | Min.Turning radius | Wa (mm) | 1517 | |
| Performance | 5.1 | Travel speed,laden/unladen | (km/h) | 4.2/4.5 |
| 5.2 | Lifting speed, with/without load | (mm/s) | 21/27 | |
| 5.3 | Lowering speed, with/without load | (mm/s) | 38/38 | |
| 5.4 | Maximum climbing ability, with/without load | (%) | 8/15 | |
| 5.5 | Service brake | Electromagnetic | ||
| Drive | 6.1 | Drive motor, 60 minute rating | (kW) | 1.3 |
| 6.2 | Lift motor rating at S3 15% | (kW) | 0.8 | |
| 6.3 | Battery voltage/rated capacity | (V/Ah) | 24/210 | |
| 6.4 | Battery weight (± 5%) | (kg) | 195 | |
| Others | 7.1 | Type of drive control | DC | |
| 7.2 | Noise level at operator‘s ear | (dB(A)) | 68 | |
| 7.3 | Type of drive steering | Mechanical |
