Product Details:
|
| Rated Traction Weight: | 2000kg | Power: | Electric |
|---|---|---|---|
| Battery: | Lithium Battery | Lowered Hength: | 85mm |
| Load Centre: | 600mm | Wheels Type: | PU |
| Lift: | 200mm | Min.Turning Radius: | 1398mm |
| Width Of Forks: | 550/685mm | Fork Dimensions: | 50/150/1150mm |
| Battery Voltage: | 48V | Battery Rated Capacity: | 20/30Ah |
| Highlight: | 2 Ton Electric Pallet Truck,Hydraulic Electric Pallet Truck,hydraulic pallet truck 2 ton |
||

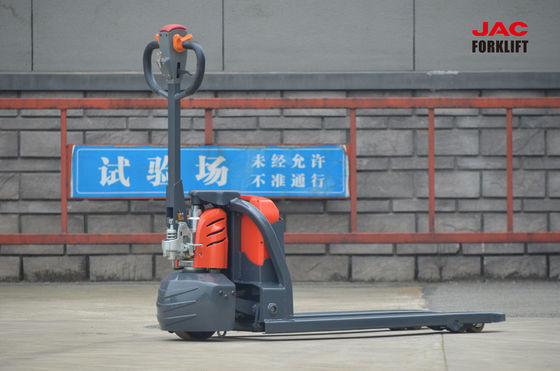

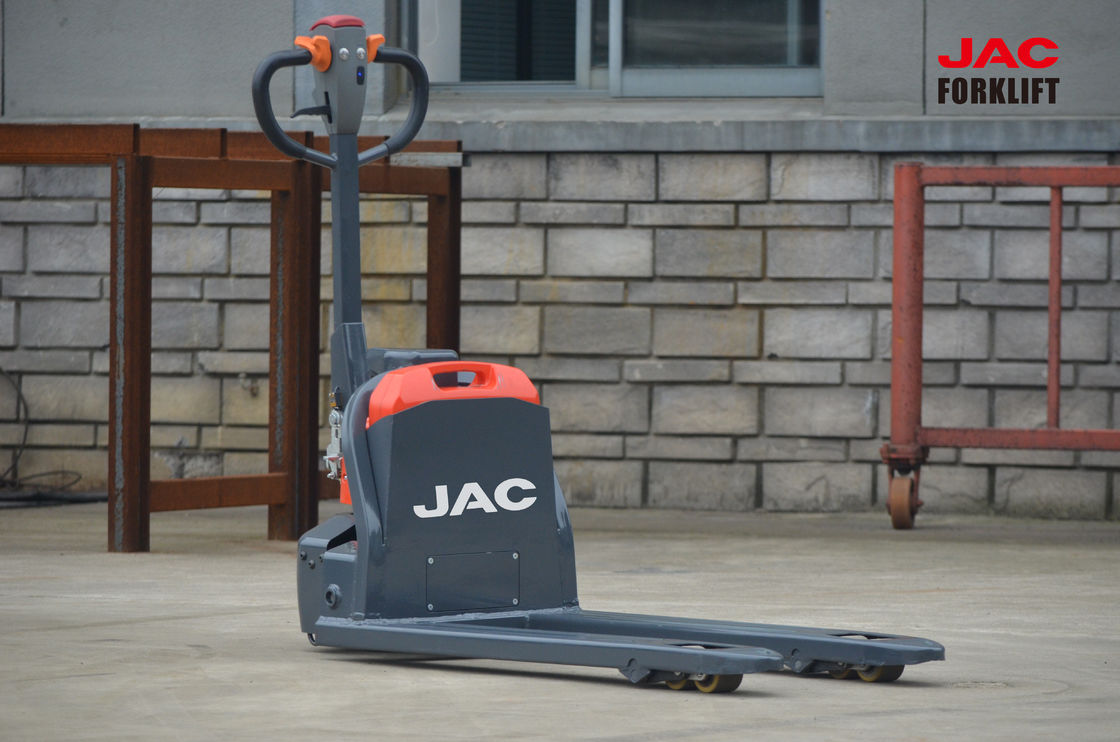

2 Ton Hydraulic Electric Pallet Truck For Material Handling
Electric Pallet Truck,they are especially suitable for cargo loading and unloading, handling, stacking, etc for food, bank, light textile, station, port, logistics and other enterprises.
The service environment:
a. Altitude does not exceed 1200 meters
b. temperature not over +40℃,not under +5℃；
c. when environment temperature at +40℃,the relative humidity can’t over 50%,At low temperature,allow big relative humidity;
d. ground need hard and flat;
e. It is forbidden to use this car in corrosive environment such as flammable and explosive or acid base.
| Characteristics | 1.1 | Manufacturer | Unit | JAC | |||
| 1.2 | Model | CBD18Li | |||||
| 1.3 | Power unit | electric | |||||
| 1.4 | Operation | pedestrian | |||||
| 1.5 | Rated traction weight | kg | 1500 | ||||
| 1.6 | Load centre | mm | 600 | ||||
| 1.7 | Axle centre to fork face | mm | 944 | ||||
| 1.8 | Wheel base | mm | 1243 | ||||
| Weights | 2.1 | Service weight with battery | kg | 156 | |||
| Wheels/Tyres | 3.1 | Wheels type | PU | ||||
| 3.2 | Driving wheel size | Φ×w(mm) | Φ210×70 | ||||
| 3.3 | Bearing wheel size | Φ×w(mm) | Φ80×60 | ||||
| 3.4 | Wheels, number front/rear (x = driven) | 1x/4 | |||||
| 3.5 | Track width | mm | 390/535 | ||||
| Dimensions | 4.1 | Lift | mm | 200 | |||
| 4.2 | Overall height(With handle) | mm | 610/1212 | ||||
| 4.3 | Lowered hength | mm | 85 | ||||
| 4.4 | Overall length | mm | 1615 | ||||
| 4.5 | Length to fork face | mm | 465 | ||||
| 4.6 | Overall width | mm | 550/685 | ||||
| 4.7 | Fork dimensions | s/e/l (mm) | 50/150/1150 | ||||
| 4.8 | Width of forks | mm | 550/685 | ||||
| 4.9 | Min.Ground clearance | mm | 35 | ||||
| 4.10 | Aisle width with pallet 1000 x 1200 across forks | mm | 1815 | ||||
| 4.11 | Aisle width with pallet 800 x 1200 along forks | mm | 1865 | ||||
| 4.12 | Min.Turning radius | mm | 1405 | ||||
| Performance | 5.1 | Travel speed,laden/unladen | km/h | 4.2/4.5 | |||
| 5.2 | Lifting speed,laden/unladen | mm/s | 40/62 | ||||
| 5.3 | Maximum climbing ability, with/without load | % | 5/8 | ||||
| 5.4 | Service brake | Electromagnetic | |||||
| Drive/Battery | 6.1 | Drive motor, 60 minute rating | kW | 0.75 | |||
| 6.2 | Lift motor rating at S3 15% | kW | 0.8 | ||||
| 6.3 | Battery voltage/rated capacity( lithium battery) | V/Ah | 24/20 | 24/30 | 24/40 | 24/60 | |
| 6.4 | Battery weight (± 5%) | kg | 6 | 7.8 | 10.2 | 13.2 | |
| Others | 7.1 | Type of drive control | DC power | ||||
| 7.2 | Noise level at operator‘s ear | dB(A) | ≤70 | ||||
| 7.3 | Steering type | Mechanical |
|||||
