Product Details:
|
| Rated Traction Weight: | 1500kg | Power: | Electric |
|---|---|---|---|
| Battery: | Lead-acid Battery | Lowered Hength: | 85mm |
| Load Centre: | 600mm | Wheels Type: | PU |
| Lift: | 200mm | Min.Turning Radius: | 1434mm |
| Width Of Forks: | 560/685mm | Fork Dimensions: | 50/150/1150mm |
| Battery Voltage: | 24V | Battery Rated Capacity: | 2*12/75Ah |
| Highlight: | 1500kg Electric Pallet Truck,walkie rider Electric Pallet Truck,1.5T walkie rider pallet jack |
||

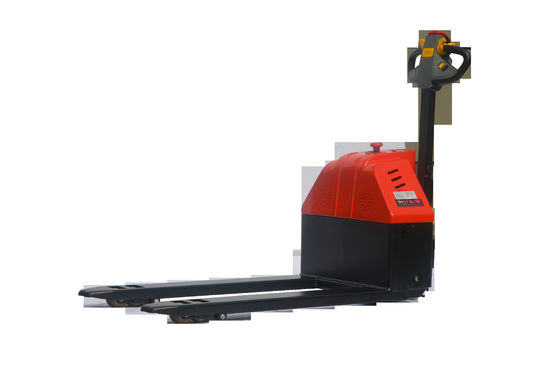

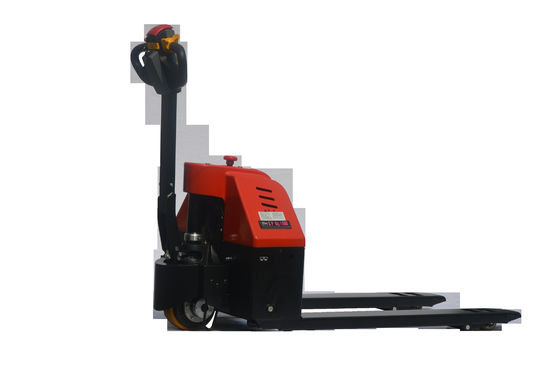

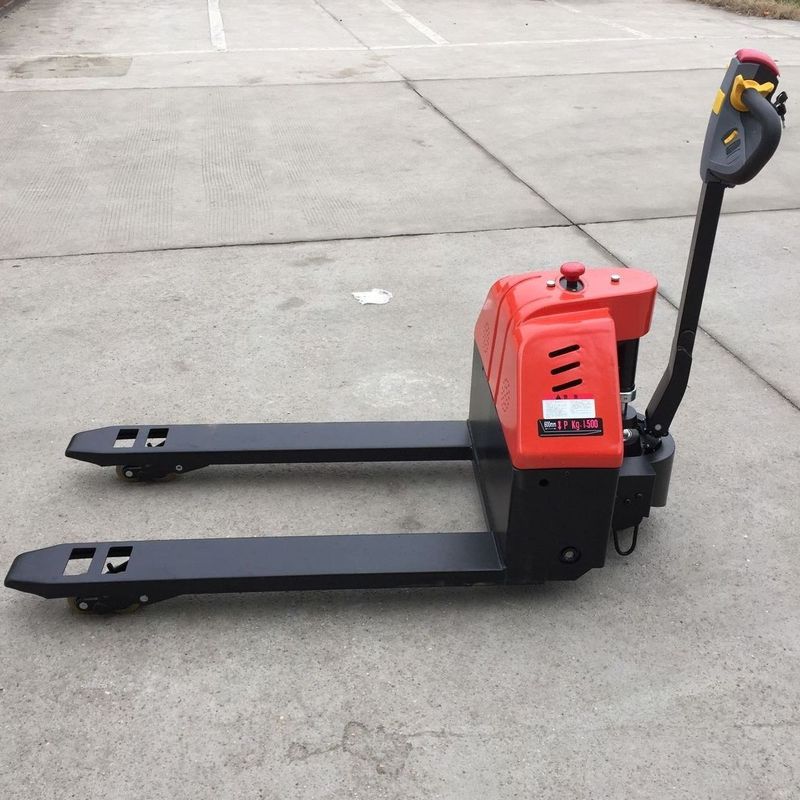

1.5T pedestrian Walkie Rider Electric Pallet Truck 1500kg
| Characteristics | 1.1 | Manufacturer | Unit | JAC |
| 1.2 | Model | CBD15 | ||
| 1.3 | Power unit | electric | ||
| 1.4 | Operation | pedestrian | ||
| 1.5 | Rated traction weight | kg | 1500 | |
| 1.6 | Load centre | mm | 600 | |
| 1.7 | Axle centre to fork face | mm | 944 | |
| 1.8 | Wheel base | mm | 1267 | |
| Weights | 2.1 | Service weight with battery | kg | 190/230 |
| Wheels/Tyres | 3.1 | Wheels type | PU | |
| 3.2 | Driving wheel size | Φ210×70,1 | ||
| 3.3 | Bearing wheel size | φ80×60,4 | ||
| 3.4 | Wheels, number front/rear (x = driven) | 4/1x | ||
| 3.5 | Track width | mm | 410/535 | |
| Dimensions | 4.1 | Lift | mm | 200 |
| 4.2 | Overall height(With handle) | mm | 612/1195 | |
| 4.3 | lowered hength | mm | 85 | |
| 4.4 | Overall length | mm | 1624 | |
| 4.5 | Length to fork face | mm | 474 | |
| 4.6 | Overall width | mm | 560/685 | |
| 4.7 | Fork dimensions | s/e/l (mm) | 50/150/1150 | |
| 4.8 | Width of forks | mm | 560/685 | |
| 4.9 | Min.Ground clearance | mm | 35 | |
| 4.1 | Aisle width with pallet 1000 x 1200 across forks | mm | 1824 | |
| 4.11 | Aisle width with pallet 800 x 1200 along forks | mm | 1874 | |
| 4.12 | Min.Turning radius | mm | 1354 | |
| Performance | 5.1 | Travel speed,laden/unladen | mm | 4.2/4.5 |
| 5.2 | The max Lifting speed, laden/unladen | mm | 27/33 | |
| 5.3 | Lowering speed, laden/unladen | mm | 33/23 | |
| 5.4 | Maximum climbing ability, with/without load | mm | 6/8 | |
| 5.5 | Service brake | Electromagnetic | ||
| Drive | 6.1 | Drive motor, 60 minute rating | v/kw | 24V/0.75kw |
| 6.2 | Lift motor rating at S3 15% | v/kw | 24V/0.8kw | |
| 6.3 | Battery voltage/rated capacity | v/Ah | 2×12V/75Ah | |
| 6.4 | Battery weight (± 5%) | kg | 40 | |
| Others | 7.1 | Type of drive control | DC | |
| 7.2 | Noise level at operator‘s ear | dB(A) | 67 | |
| 7.3 | Steering type | Mechanical steering |
