Product Details:
|
| Power: | Electric Pallet Stacker | Load Capacity: | 1T - 3T |
|---|---|---|---|
| Load Center: | 500mm | Lift Height: | 3000~5000mm |
| Fork Length: | 1220mm | Condition: | New |
| Min. Lifting Height: | 3000mm | Weight: | 4300KGS,1500Kg-4150kg |
| Highlight: | fully electric pallet stacker Truck,CDD15 fully electric pallet stacker,CDD15 electric pallet truck stacker |
||

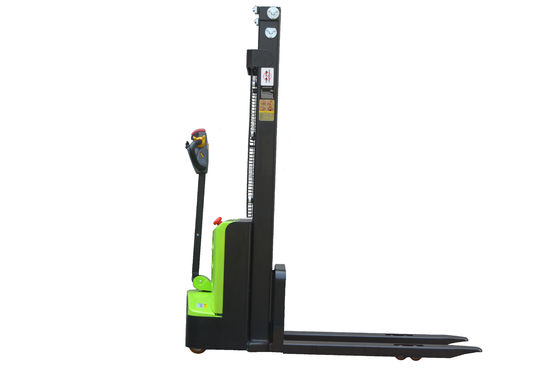

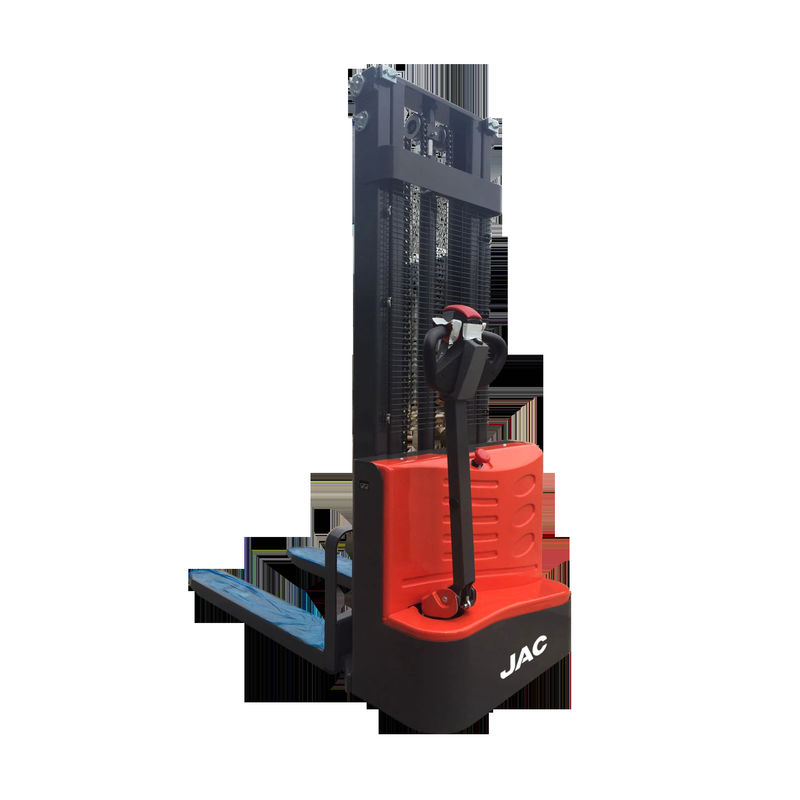

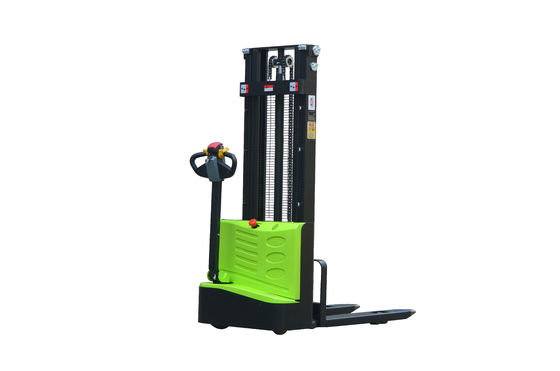

1.5T Walk Behind Electric Stacker / CDD15
Product description
The electric stacker is designed with a maximum load capacity of 1000kg. The stacker features delicate appearance, flexible operation, high productivity, great maneuverability, high economic efficiency and environmental protection, ideal for goods transportation and stacking at low frequency, at low intensity and over short distances. The pallet stacker is perfect for use in most goods turnover and freight handling applications.
Features
1. Battery discharge LED indicator clearly displays the state of charge in four colors—green, blue, orange and red.
2. Key switch and battery discharge indicator are integrated in the handle for ease of operations.
3. External charger provides better heat dissipation performance and eliminates the risk of battery damage caused by stacker bump and vibration.
4. External charger provides better heat dissipation performance and eliminates the risk of battery damage caused by stacker bump and vibration.
5. Permanent magnet motor drive system features small volume, light weight, low energy loss and high working efficiency.
6. Reinforcing ribs are set between internal and external gantries to improve the sturdiness of walkie pallet jack and prevent the gantry from toppling over due to load lifting.
Technical Parameters of Diesel Forklift
| 1.5 ton walking electric stacker | ||||||||||
| Characteristics | 1.1 | Manufacturer | Unit | JAC | ||||||
| 1.2 | Model | CDD15 | ||||||||
| 1.3 | Power unit | electric | ||||||||
| 1.4 | Operation | pedestrian | ||||||||
| 1.5 | Rated traction weight | kg | 1500 | |||||||
| 1.6 | Load center distance | mm | 600 | |||||||
| 1.7 | Axle centre to fork face | mm | 720 | |||||||
| 1.8 | Wheel base | mm | 1167 | |||||||
| Weights | 2.1 | Service weight(with battery) | kg | 415 | 460 | 477 | 495 | 503 | 515 | 525 |
| Wheels/Tyres | 3.1 | Tires | PU | |||||||
| 3.2 | Driving wheel size | Φ×w(mm) | Φ210×70 | |||||||
| 3.3 | Bearing wheel size | Φ×w(mm) | Φ80×70 | |||||||
| 3.4 | Additional wheels(dimensions) | Φ×w(mm) | Φ115×55 | |||||||
| 3.5 | Wheels, number front/rear (x = driven) | 1x+1/4 | ||||||||
| 3.6 | Track width | mm | 522 | |||||||
| 3.7 | Track width | mm | 410/535 | |||||||
| Dimensions | 4.1 | The max. lifting height | mm | 1600 | 2000 | 2500 | 3000 | 3300 | 3500 | 4000 |
| 4.2 | Load capacity on Max. height | kg | 1500 | 1300 | 1100 | 900 | 800 | 700 | 300 | |
| 4.3 | Extended mast height | mm | 2015 | 2452 | 2952 | 3452 | 3752 | 3952 | 4452 | |
| 4.4 | Lowered mast height | mm | 2015 | 1495 | 1745 | 1995 | 2145 | 2245 | 2495 | |
| 4.5 | Free lifting height | mm | 1600 | 0 | 0 | 0 | 0 | 0 | 0 | |
| 4.6 | Height of handle in drive position min./max. | mm | 700/1225 | |||||||
| 4.7 | Lowered fork height | mm | 86 | |||||||
| 4.8 | Overall length | mm | 1740 | |||||||
| 4.9 | Length to fork face | mm | 590 | |||||||
| 4.10 | Overall width | mm | 795 | |||||||
| 4.11 | Fork dimensions | s/e/l (mm) | 60/160/1150 | |||||||
| 4.12 | Width of forks | mm | 570/695 | |||||||
| 4.13 | Min.Ground clearance | mm | 26 | |||||||
| 4.14 | Aisle width with pallet 1000 x 1200 across forks | mm | 2074 | |||||||
| 4.15 | Aisle width with pallet 800 x 1200 along forks | mm | 2040 | |||||||
| 4.16 | Min.Turning radius | mm | 1342 | |||||||
| Performance | 5.1 | Travel speed,laden/unladen | km/h | 4.0/4.2 | ||||||
| 5.2 | Lifting speed, with/without load | mm/s | 92/136 | |||||||
| 5.3 | Lowering speed, with/without load | mm/s | 112/98 | |||||||
| 5.4 | Maximum climbing ability, with/without load | % | 6/8 | |||||||
| 5.5 | Service brake | electromagnetic braking | ||||||||
| Drive | 6.1 | Drive motor, 60 minute rating | kW | 0.75 | ||||||
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 | |||||||
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | no | ||||||||
| 6.4 | Battery voltage | V/Ah | 2×12/100 | |||||||
| 6.5 | Battery weight (± 5%) | kg | 2×27 | |||||||
| Others | 7.1 | Type of drive control | DC power | |||||||
| 7.2 | Noise level at operator‘s ear | dB(A) | 69 | |||||||
| 7.3 | Steering type | Mechanical steering | ||||||||
Related Information
HS Code: 8427209000
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
