Product Details:
|
| Rated Capacity: | 320kg | Power: | Electric |
|---|---|---|---|
| Max.platform Height: | 10m | Max.working Height: | 12m |
| Platfor Size(length Χ Width): | 2.25x1.15m | Battrey Voltage/capacity: | 6x4V/180Ah |
| Drive: | Dual Fornt Wheels | Overall Weight: | 2820 |
| Highlight: | JAC Aerial Platform Lift,10m Aerial Platform Lift,JAC modern scissor lift |
||

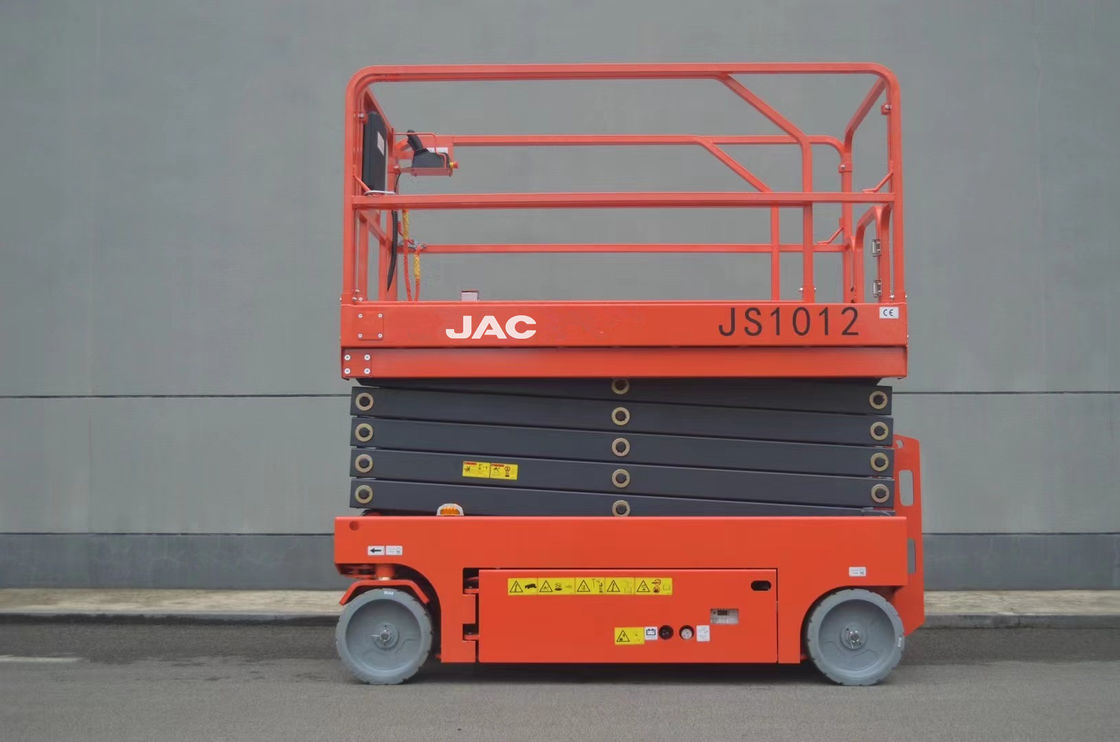

| Modle | JS1012 | JS1012E | |
| Dmension | |||
| Max.working height | m | 12 | 12 |
| Max.platform height | m | 10 | 10 |
| Overall length | m | 2.4 | 2.4 |
| Overall width | m | 1.15 | 1.15 |
| Overall height(guardrall unfolded) | m | 2.46 | 2.46 |
| Hight stowed-rails folded | m | 1.84 | 1.84 |
| Platfor Size(length Χ width)(EXF) | m | 2.25x1.15 | 2.25x1.15 |
| Guardrail hight(G) | m | 1.1 | 1.1 |
| H Extension size of platform | m | 1 | 1 |
| Ground clearance(retracted state) | mm | 95 | 95 |
| Ground clearance(lifting state) | mm | 20 | 20 |
| Wheelbase | m | 1.85 | 1.85 |
| Performance | |||
| Max.number of workers(indoor/outdoor) | 2 / 1 | 2 / 1 | |
| Rated capacity | kg | 320 | 320 |
| Rated capacity of extension platform | kg | 120 | 120 |
| Drive speed(retracted state) | km/h | 0~3.2 | 0~3.2 |
| Drive speed(lifting state) | km/h | 0~0.8 | 0~0.8 |
| Min.turning radius(inside) | m | 0 | 0 |
| Min.turning radius(outside) | m | 2.2 | 2.2 |
| Lifting/Falling time | s | 52/48 | 52/48 |
| Max.work slop(forward and backward/left andright) | ° | 3°/1.5° | 3°/1.5° |
| Max.allowable wind speed (indoor/outdoor) | m/s | 0/12.5 | 0/12.5 |
| Max.allowable wind speed(indoor/outdoor) | N | 400/200 | 400/200 |
| Gradeability | % | 25% | 30% |
| Controls type | Proportional control | ||
| Drive | Dual fornt wheels | Dual fornt wheels | |
| Brake | Dual front wheels | Dual fornt wheels | |
| Tyres size | mm | 381x129 | 381x129 |
| Power | |||
| Lifting/driving motor power | kw | 3.3 | 3.3/0.7x2 |
| Battrey voltage/capacity | V/Ah | 6x4/180 | 6x4/180 |
| Charger input voltage | VAC | 100-240 | 100-240 |
| Charger output current | A | 36 | 36 |
| Controls voltage | VDC | 24 | 24 |
| Hydraulic tank capacity | L | 22 | 22 |
| Overall weight | kg | 2820 | 2820 |
Features
1.Vehicle CE certification, American standard certification and Australian certification, higher safety factor, more reliable.
2.Parts universal, modular design, and two sides of the overall spiral out of the tray, repair and maintenance more convenient.
3.The better matching of electrical and hydraulic systems greatly improves the number of lifts and longer endurance.
4.Split boom cylinder control valve design and tubing anti-burst system, so that more professional and intimate protection everywhere.
