Product Details:
|
| Rated Traction Weight: | 1000kg | Power: | Electric |
|---|---|---|---|
| Battery: | Lead-acid Battery | Lowered Hength: | 86mm |
| Load Centre: | 600mm | Wheels Type: | PU |
| Lifting Height: | 1600mm | Min.Turning Radius: | 1280mm |
| Width Of Forks: | 570/695mm | Fork Dimensions: | 60/160/1150mm |
| Battery Voltage: | 24V | Battery Rated Capacity: | 2*12/100Ah |
| Highlight: | Walkie electric stacker trucks,Single Mast electric stacker trucks,1000kg semi electric walkie stacker |
||

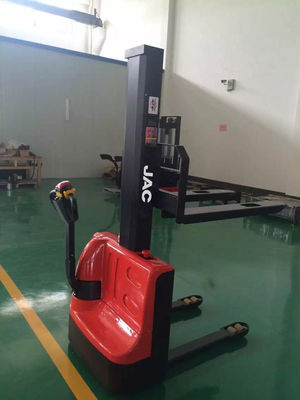

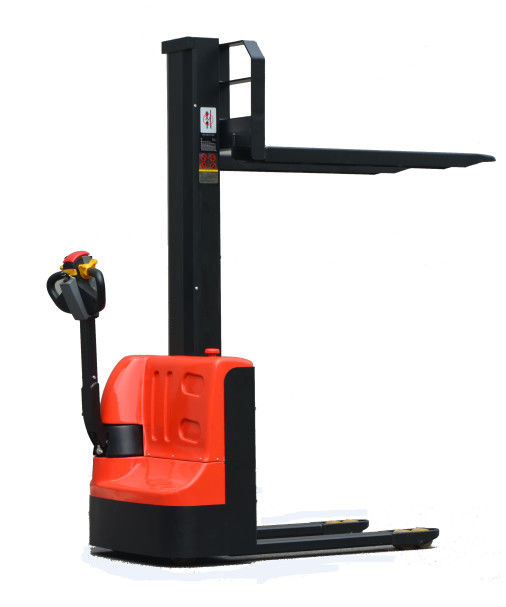

1000kg Walkie Semi Electric Stacker Trucks Single Mast
| Characteristics | 1.1 | Model | CDD10D | |
| 1.2 | Power unit | Electric | ||
| 1.3 | Operation | Walkie | ||
| 1.4 | Rated traction weight | kg | 1000 | |
| 1.5 | Load center distance | mm | 600 | |
| 1.6 | Axle centre to fork face | mm | 780 | |
| 1.7 | Wheel base | mm | 1100 | |
| 1.8 | Service Weight | kg | 406 | |
| Wheels/Tyres | 3.1 | Tires | Polyurethane | |
| 3.2 | Driving wheel size/number | Φ×w(mm) | Φ210×70 | |
| 3.3 | Front wheel size/number | Φ×w(mm) | Φ80×70 | |
| 3.4 | Balance wheel size/number | Φ×w(mm) | Φ150×58 | |
| 3.5 | Wheels, number front/rear (x = driven) | 1x+1/4 | ||
| 3.6 | Drive end | mm | 516 | |
| 3.7 | Track width | mm | 410/535 | |
| Dimensions | 4.1 | Lowered mast height | mm | 1990 |
| 4.2 | Lifting height | mm | 1600 | |
| 4.3 | The max. lifting height | mm | 2060 | |
| 4.4 | Load capacity on Max. height | kg | 800 | |
| 4.5 | Height of handle in drive position | mm | 870/1200 | |
| 4.6 | Lowered fork height | mm | 86 | |
| 4.7 | Overalllength | mm | 1632 | |
| 4.8 | Length to fork face | mm | 482 | |
| 4.9 | Overall width | mm | 795 | |
| 4.10 | Fork dimensions | s/e/l (mm) | 60/160/1150 | |
| 4.11 | Width of forks | mm | 570/695 | |
| 4.12 | Min.Ground clearance | mm | 26 | |
| 4.13 | Aisle width with pallet 1000 x 1200 across forks | mm | 2120 | |
| 4.14 | Aisle width with pallet 800 x 1200 along forks | mm | 2060 | |
| 4.15 | Min.Turning radius | mm | 1280 | |
| Performance | 5.1 | Travel speed,laden/unladen | km/h | 4.0/4.2 |
| 5.2 | Lifting speed, with/without load | mm/s | 92/136 | |
| 5.3 | Lowering speed, with/without load | mm/s | 112/98 | |
| 5.4 | Maximum climbing ability, with/without load | % | 3/10 | |
| 5.5 | Service brake | Electromagnetic | ||
| Drive | 6.1 | Drive motor, 60 minute rating | kW | 0.75 |
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 | |
| 6.3 | Battery voltage/rated capacity | V/Ah | 2×12/100 | |
| 6.4 | Battery weight (± 5%) | kg | 2×27 | |
| Others | 7.1 | Type of drive control | DC | |
| 7.2 | Noise level at operator‘s ear | dB(A) | ≤70 | |
| 7.3 | Type of drive steering | Mechanical |
