Product Details:
|
| Rated Traction Weight: | 1200kg | Power: | Electric |
|---|---|---|---|
| Battery: | Lead-acid Battery | Lowered Hength: | 86mm |
| Load Centre: | 600mm | Wheels Type: | PU |
| Lifting Height: | 1600/2000/2500/3000/3500/4000mm | Min.Turning Radius: | 1405mm |
| Width Of Forks: | 570/695mm | Fork Dimensions: | 60/160/1150mm |
| Battery Voltage: | 24V | Battery Rated Capacity: | 2*12/100Ah |
| Highlight: | full electric pallet stacker 1200kg,1.2T full electric pallet stacker,1.2T electric lift pallet stacker |
||

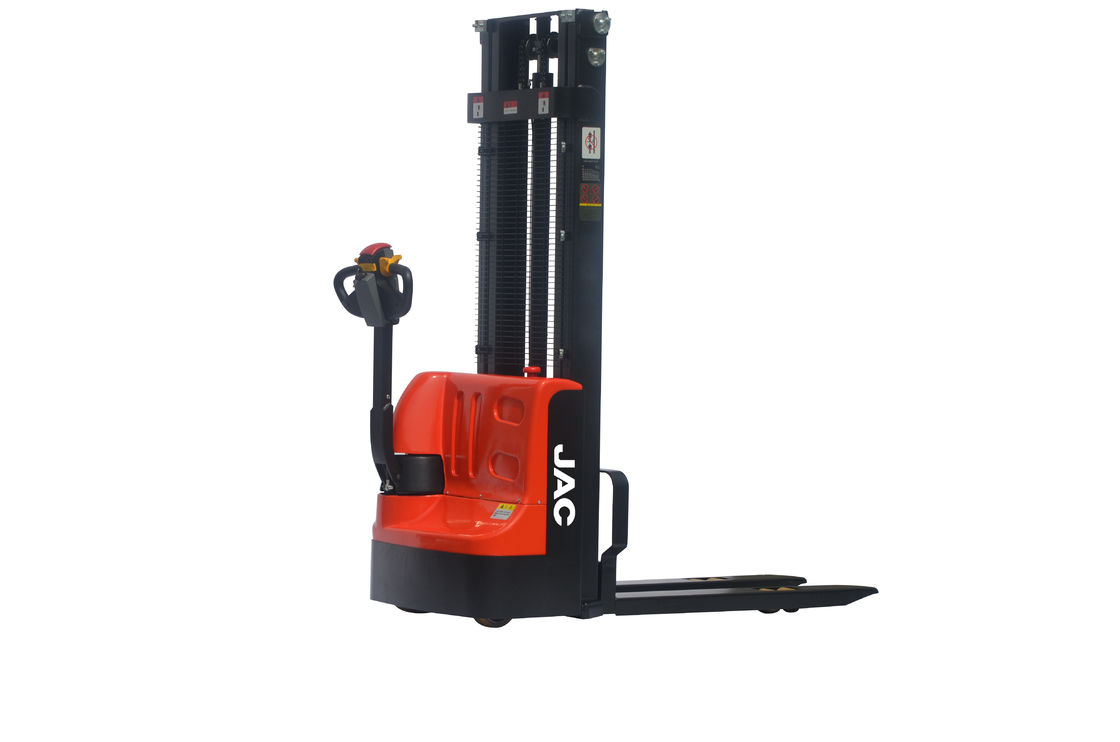

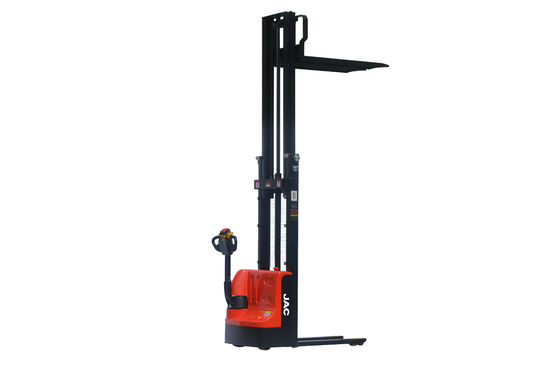

Full Electric Pallet Stacker Lift 1200kg 1.2T With Mechanical Steering
| Characteristics | 1.1 | Manufacturer | Unit | JAC | |||||
| 1.2 | Model | CDD12J | |||||||
| 1.3 | Power unit | electric | |||||||
| 1.4 | Operation | pedestrian | |||||||
| 1.5 | Rated traction weight | kg | 1000 | ||||||
| 1.6 | Load center distance | mm | 600 | ||||||
| Weights | 2.1 | Service weight | kg | 384 | 437 | 451 | 465 | 510 | 540 |
| Wheels | 3.1 | Wheels type | PU | ||||||
| Dimensions | 4.1 | The max. lifting height | mm | 1600 | 2000 | 2500 | 3000 | 3500 | 4000 |
| 4.2 | Load capacity on Max. height | kg | 1000 | 900 | 800 | 700 | 500 | 300 | |
| 4.3 | Extended mast height | mm | 2014 | 2451 | 2924 | 3424 | 3924 | 4147 | |
| 4.4 | Lowered mast height | mm | 2014 | 1494 | 1744 | 1994 | 2245 | 2495 | |
| 4.5 | Lowered fork height | mm | 86 | ||||||
| 4.6 | Overall length | mm | 1755 | ||||||
| 4.7 | Overall width | mm | 795 | ||||||
| 4.8 | Overall fork width | mm | 570/695 | ||||||
| 4.9 | Fork length | mm | 1150 | ||||||
| 4.10 | Single fork width | mm | 160 | ||||||
| 4.11 | Aisle width for pallets 1000×1200 cross ways | mm | 2074 | ||||||
| 4.12 | Aisle width for pallets 800×1200 length ways | mm | 2040 | ||||||
| 4.13 | Turning radius | mm | 1336 | ||||||
| 4.14 | Fixed leg length | mm | 928 | ||||||
| 4.15 | Single fixed leg width | mm | 124 | ||||||
| 4.16 | Outside width between fixed legs | mm | 534/659 | ||||||
| Performance | 5.1 | Travel speed,laden/unladen | km/h | 4.0/4.2 | |||||
| 5.2 | Lifting speed, with/without load | mm/s | 92/136 | ||||||
| 5.3 | Service brake | electromagnetic braking | |||||||
| Drive | 6.1 | Drive motor, 60 minute rating | kW | 0.75 | |||||
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 | ||||||
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | no | |||||||
| 6.4 | Battery voltage | V/Ah | 2×12V/100AH | ||||||
| Others | 7.1 | Type of drive control | DC power | ||||||
| 7.2 | Noise level at operator‘s ear | dB(A) | 69 | ||||||
| 7.3 | Steering type | Mechanical steering | |||||||
