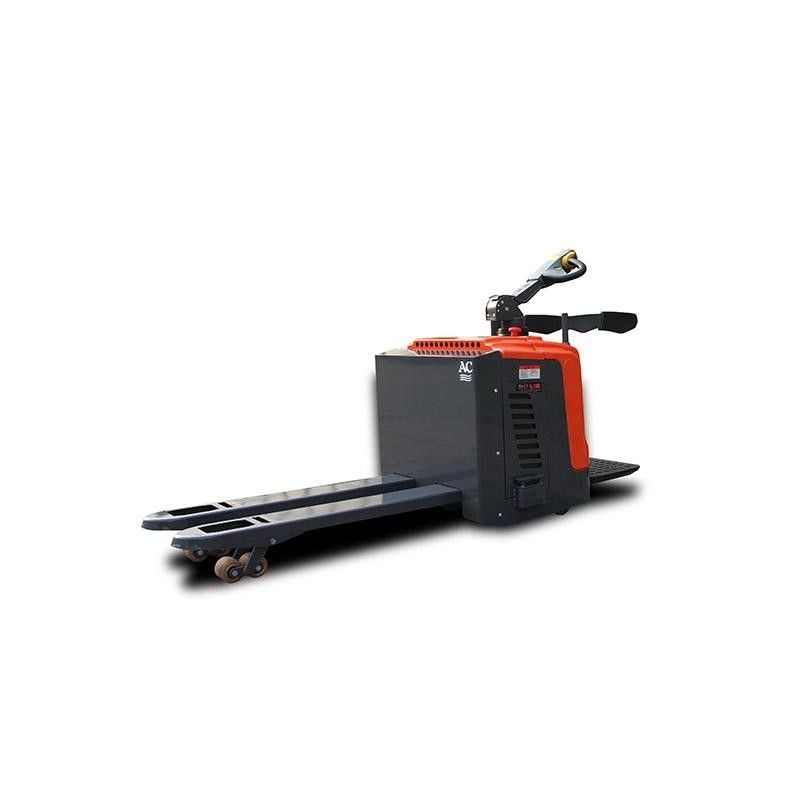

Product Details:
|
| Rated Traction Weight: | 3000kg | Power: | Electric |
|---|---|---|---|
| Battery: | Lead-acid Battery | Lowered Hength: | 85mm |
| Load Centre: | 600mm | Wheels Type: | PU |
| Lift: | 200mm | Min.Turning Radius: | 1746mm |
| Width Of Forks: | 540/685mm | Fork Dimensions: | 50/185/1150（1220）mm |
| Battery Voltage: | 24V | Battery Rated Capacity: | 210Ah |
| Highlight: | 3 Ton Electric Pallet Truck,3000kg semi Electric Pallet Truck,3 Ton semi electric pallet stacker |
||
| Characteristics | 1.1 | Manufacturer | Unit | JAC |
| 1.2 | Model | CBD30 | ||
| 1.3 | Power unit | Electric | ||
| 1.4 | Operation | Stand | ||
| 1.5 | Load capacity | kg | 3000 | |
| 1.6 | Load center distance | mm | 600 | |
| Weights | 2.1 | Service weight (without battery) | kg | 850(640) |
| Wheels/Tyres | 3.1 | Wheels type | PU | |
| 3.2 | Driving wheel size/number | φ250×75/1 | ||
| 3.3 | Front wheel size/number | φ80×80/4 | ||
| 3.4 | Balance wheel size/number | φ115×55/2 | ||
| Dimensions | 4.1 | Lift | mm | 200 |
| 4.2 | Lowered fork height | mm | 85 | |
| 4.3 | Overall length (Pedal down) | mm | 1925(2320) | |
| 4.4 | Overall width | mm | 808 | |
| 4.5 | Overall fork width | mm | 540/685 | |
| 4.6 | Fork length | mm | 1150/1220 | |
| 4.7 | Single fork width | mm | 185 | |
| 4.8 | Turing radius | mm | 1746 | |
| Performance | 5.1 | The max driving speed,laden/unladen | km/h | 5.8/6.0 |
| 5.2 | Service brake | Electromagnetic | ||
| Drive | 6.1 | Drive motor | V/kw | 24V/3kw |
| 6.2 | Lift motor | V/kw | 24V/1.5kw | |
| 6.3 | Battery voltage | V/Ah | 24V/210Ah | |
| Others | 7.1 | Type of drive control | DC | |
| 7.2 | Noise level at operator‘s ear | dB(A) | 67 | |
| 7.3 | Steering type | Electronic steering |
