Product Details:
|
| Rated Traction Weight: | 2000kg | Power: | Electric |
|---|---|---|---|
| Battery: | Lead-acid Battery | Lowered Hength: | 85mm |
| Load Centre: | 600mm | Wheels Type: | PU |
| Lift: | 200mm | Min.Turning Radius: | 1738mm |
| Width Of Forks: | 540/685mm | Fork Dimensions: | 50/160/1150mm |
| Battery Voltage: | 24V | Battery Rated Capacity: | 2*12/100Ah |
| Highlight: | JAC electric pallet jack stacker,2T electric pallet jack stacker,2T mechanical pallet jack |
||

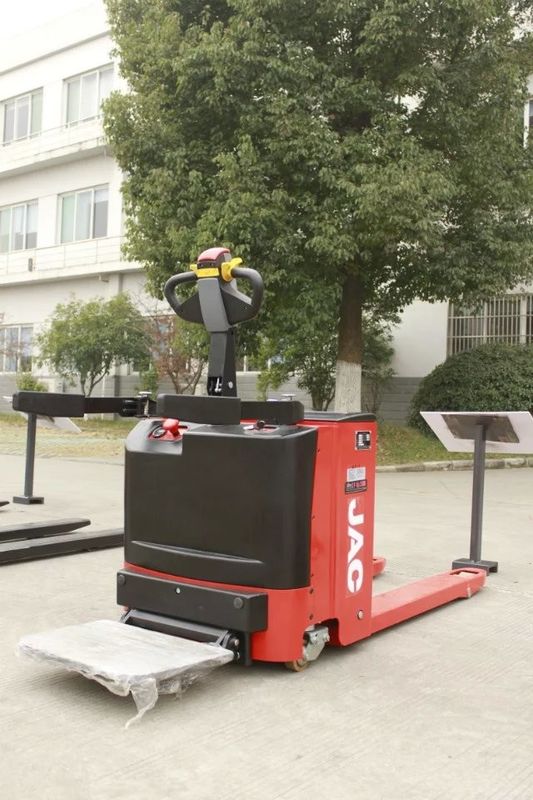

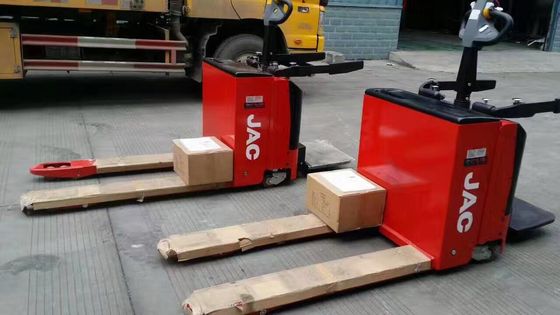

JAC 2T Electric Pallet Jack Stacker Mechanical Steering
| Model | Unit | CBD20 |
| Load capacity | kg | 2000 |
| Overall fork width | mm | 540/685 |
| Fork length | mm | 1150/1220 |
| Single fork width | mm | 160 |
| Lowered fork height | mm | 85 |
| Max. lifting height | mm | 200 |
| Overall length (Pedal down) | mm | 1860(2260) |
| Overall width | mm | 776 |
| Overall height | mm | 1300 |
| Front wheel size, number | φ80×70,4个 | |
| Driving wheel size, number | φ250×80,1个 | |
| Balance wheel size, number | φ100×40,2个 | |
| Turing radius | mm | 1738 |
| Load center distance | mm | 600 |
| Lift motor | v/kw | 24V/1.5kw |
| Drive motor | v/kw | 24V/1.5kw |
| Battery voltage | v/Ah | 2*12V/100AH |
| Working time of fully charged battery | h | 5 |
| Service weight (without battery) | kg | 500(320) |
