Product Details:
|
| Power: | Electric Pallet Stacker | Load Capacity: | 1T - 3T |
|---|---|---|---|
| Load Center: | 500mm | Lift Height: | 3000~5000mm |
| Fork Length: | 1220mm | Condition: | New |
| Min. Lifting Height: | 3000mm | Weight: | 4300KGS,1500Kg-4150kg |
| Highlight: | JAC electric straddle pallet stacker,electric straddle pallet stacker Forklift,Mechanical pallet stacker forklift |
||

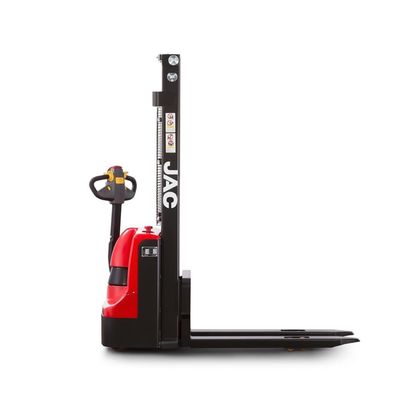

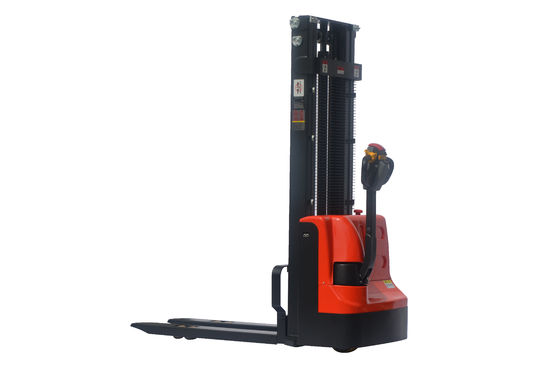

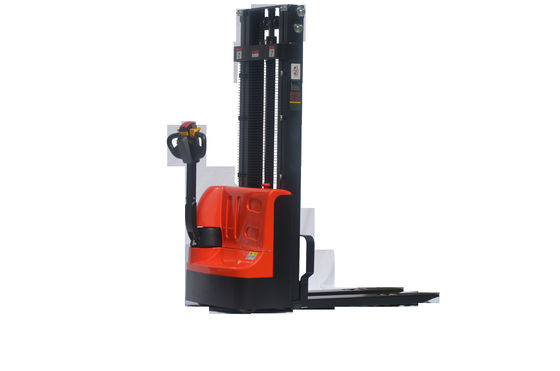

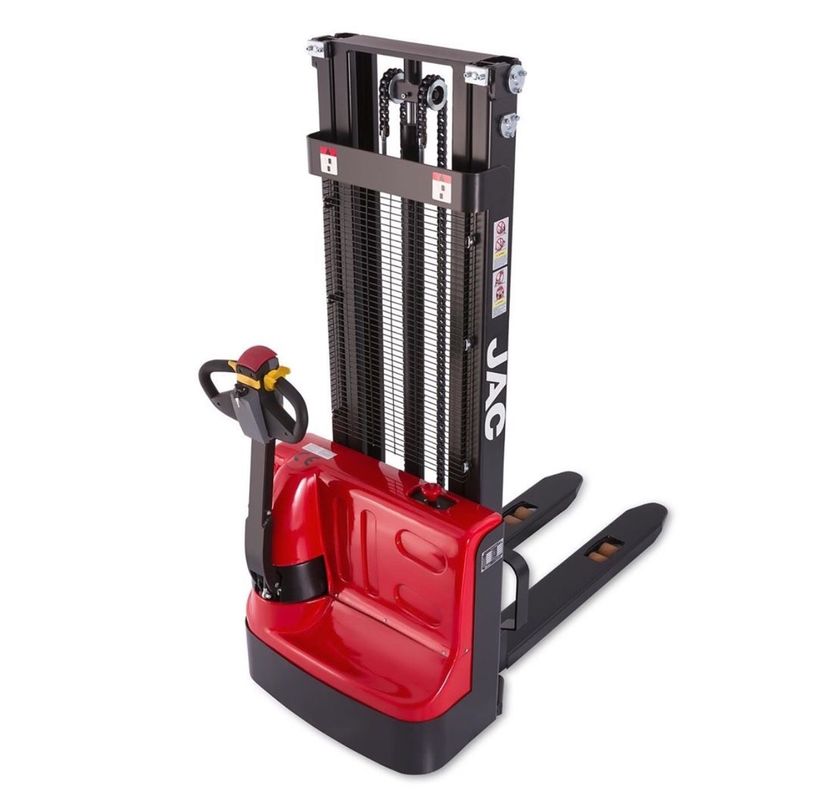

1T Electric Stacker / CDD10-12
Product description
The electric stacker is designed with a maximum load capacity of 1000kg. The stacker features delicate appearance, flexible operation, high productivity, great maneuverability, high economic efficiency and environmental protection, ideal for goods transportation and stacking at low frequency, at low intensity and over short distances. The pallet stacker is perfect for use in most goods turnover and freight handling applications.
Features
1. Flexible side stance operator platform, wide-view mast and tighter turning radius improve the ability to fit into tighter spaces for greater narrow aisle capability.
2. Ergonomically lengthened control handle provides operator with comfort and precise load control.
3. The walkie pallet jack is equipped with large-power high-performance lift pump, delivering efficient and stable lifting and lowering functionalities.
4. Lift control buttons on both sides of the handle allow easy access from either side of the riding pallet jack platform.
5. Crawl speed button on the operating handle provides precise controllability and superior maneuverability at a slower speed.
6. The handle features a return spring which can automatically restore the handle to its vertical position, enhancing durability.
Technical Parameters of Diesel Forklift
| 1/1.2 ton walking electric stacker | |||||||||
| Characteristics | 1.1 | Manufacturer | Unit | JAC | |||||
| 1.2 | Model | CDD10/CDD12 | |||||||
| 1.3 | Power unit | electric | |||||||
| 1.4 | Operation | pedestrian | |||||||
| 1.5 | Rated traction weight | kg | 1000/1200 | ||||||
| 1.6 | Load center distance | mm | 600 | ||||||
| Weights | 2.1 | Service weight | kg | 384 | 437 | 451 | 465 | 510 | 540 |
| Wheels | 3.1 | Wheels type | PU | ||||||
| Dimensions | 4.1 | The max. lifting height | mm | 1600 | 2000 | 2500 | 3000 | 3500 | 4000 |
| 4.2 | Load capacity on Max. height | kg | 1000 | 900 | 800 | 700 | 500 | 300 | |
| 4.3 | Extended mast height | mm | 2014 | 2451 | 2924 | 3424 | 3924 | 4147 | |
| 4.4 | Lowered mast height | mm | 2014 | 1494 | 1744 | 1994 | 2245 | 2495 | |
| 4.5 | Lowered fork height | mm | 86 | ||||||
| 4.6 | Overall length | mm | 1755 | ||||||
| 4.7 | Overall width | mm | 795 | ||||||
| 4.8 | Overall fork width | mm | 570/695 | ||||||
| 4.9 | Fork length | mm | 1150 | ||||||
| 4.10 | Single fork width | mm | 160 | ||||||
| 4.11 | Aisle width for pallets 1000×1200 cross ways | mm | 2074 | ||||||
| 4.12 | Aisle width for pallets 800×1200 length ways | mm | 2040 | ||||||
| 4.13 | Turning radius | mm | 1336 | ||||||
| 4.14 | Fixed leg length | mm | 928 | ||||||
| 4.15 | Single fixed leg width | mm | 124 | ||||||
| 4.16 | Outside width between fixed legs | mm | 534/659 | ||||||
| Performance | 5.1 | Travel speed,laden/unladen | km/h | 4.0/4.2 | |||||
| 5.2 | Lifting speed, with/without load | mm/s | 92/136 | ||||||
| 5.3 | Service brake | electromagnetic braking | |||||||
| Drive | 6.1 | Drive motor, 60 minute rating | kW | 0.75 | |||||
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 | ||||||
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | no | |||||||
| 6.4 | Battery voltage | V/Ah | 2×12V/100AH | ||||||
| Others | 7.1 | Type of drive control | DC power | ||||||
| 7.2 | Noise level at operator‘s ear | dB(A) | 69 | ||||||
| 7.3 | Steering type | Mechanical steering | |||||||
Related Information
HS Code: 8427209000
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
