Product Details:
|
| Load Capacity: | 1.5T - 2.0T | Load Center: | 500mm |
|---|---|---|---|
| Lift Height: | 3000~5000mm | Fork Length: | 1220mm |
| Condition: | New | Min. Lifting Height: | 3000mm |
| Weight: | 4300KGS,1500Kg-4150kg | ||
| Highlight: | ODM Electric Pallet Truck,DC Electric Pallet Truck,CBD18Li standing electric pallet jack |
||

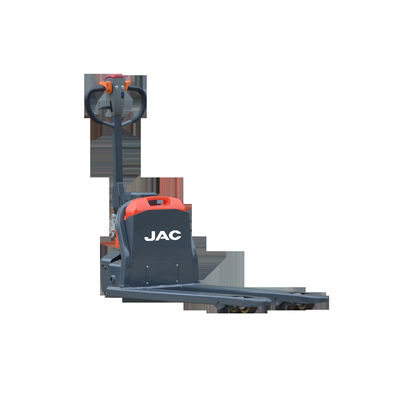

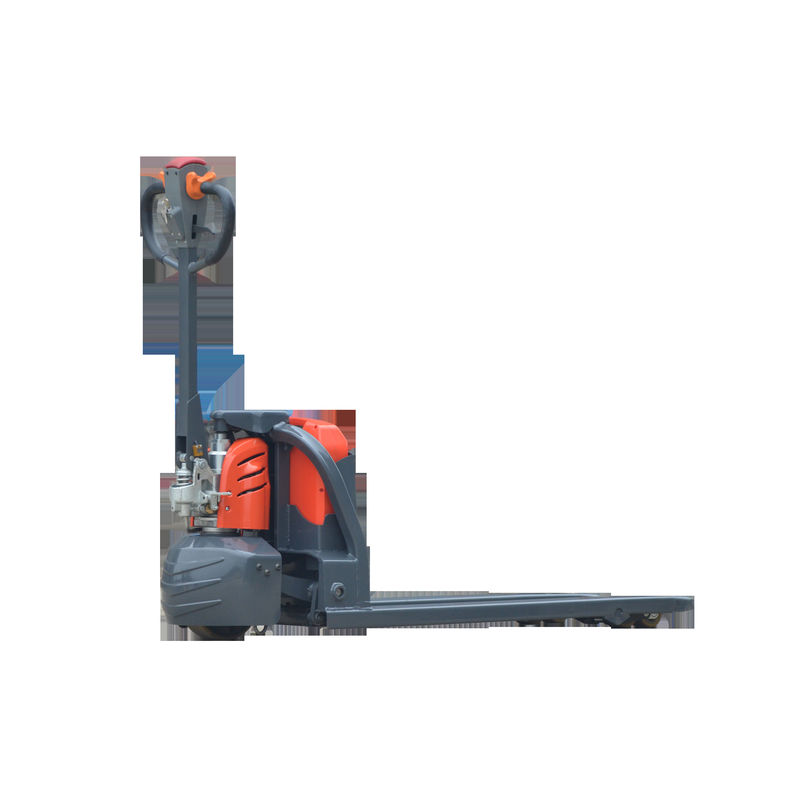

1.5/1.8/2.0T Lithium Battery Pallet Truck
Product description
With small turning radius and well-designed structure, the pallet truck is suitable for use in limited space, providing operations with low noise and high efficiency.The flexible design ensures light weight without sacrificing any stability. Users can easily maintain and repair due to the open structure.
Features
1. Battery replacement is fast so that the operation wouldn't be interrupted by using optional battery.
2.The collision avoidance design and electromagnetic brake provide considerable protection.
3. The operating handle enables excellent lifting performance to save the effort and make the operation easy.
4. The engine and wheels are well-protected by the cover to give protection to both the machine and the operator.
Technical Parameters of Diesel Forklift
| 1.5/1.8/2.0 ton lithium battery pallet truck | |||||||||||||
| Characteristics | 1.1 | Manufacturer | Unit | JAC | |||||||||
| 1.2 | Model | CBD15Li | CBD18Li | CBD20Li | |||||||||
| 1.3 | Power unit | electric | |||||||||||
| 1.4 | Operation | pedestrian | |||||||||||
| 1.5 | Rated traction weight | kg | 1500 | 1800 | 2000 | ||||||||
| 1.6 | Load centre | mm | 600 | 600 | 600 | ||||||||
| 1.7 | Axle centre to fork face | mm | 944 | 944 | 944 | ||||||||
| 1.8 | Wheel base | mm | 1243 | 1243 | 1243 | ||||||||
| Weights | 2.1 | Service weight with battery | kg | 142 | 142 | 146 | |||||||
| Wheels/Tyres | 3.1 | Wheels type | PU | ||||||||||
| 3.2 | Driving wheel size | Φ×w(mm) | Φ210×70 | Φ210×70 | Φ210×70 | ||||||||
| 3.3 | Bearing wheel size | Φ×w(mm) | Φ80×60 | Φ80×60 | Φ80×60 | ||||||||
| 3.4 | Wheels, number front/rear (x = driven) | 1x/4 | 1x/4 | 1x/4 | |||||||||
| 3.5 | Track width | mm | 400/535 | 400/535 | 400/535 | ||||||||
| Dimensions | 4.1 | Lift | mm | 200 | 200 | 200 | |||||||
| 4.2 | Overall height(With handle) | mm | 740/1160 | 740/1160 | 740/1160 | ||||||||
| 4.3 | Lowered hength | mm | 85 | 85 | 85 | ||||||||
| 4.4 | Overall length | mm | 1603 | 1603 | 1603 | ||||||||
| 4.5 | Length to fork face | mm | 453 | 453 | 453 | ||||||||
| 4.6 | Overall width | mm | 550/685 | 550/685 | 550/685 | ||||||||
| 4.7 | Fork dimensions | s/e/l (mm) | 50/150/1150 | 50/150/1150 | 50/150/1150 | ||||||||
| 4.8 | Width of forks | mm | 550/685 | 550/685 | 550/685 | ||||||||
| 4.9 | Min.Ground clearance | mm | 35 | 35 | 35 | ||||||||
| 4.10 | Aisle width with pallet 1000 x 1200 across forks | mm | 1804 | 1804 | 1804 | ||||||||
| 4.11 | Aisle width with pallet 800 x 1200 along forks | mm | 1854 | 1854 | 1854 | ||||||||
| 4.12 | Min.Turning radius | mm | 1398 | 1398 | 1398 | ||||||||
| Performance | 5.1 | Travel speed,laden/unladen | km/h | 4.2/4.5 | 4.2/4.5 | 4.2/4.5 | |||||||
| 5.2 | Maximum climbing ability, with/without load | % | 5/10 | 5/10 | 5/10 | ||||||||
| 5.3 | Service brake | electromagnetic braking | |||||||||||
| Drive/Battery | 6.1 | Drive motor, 60 minute rating | kW | 0.75 | 0.75 | 0.75 | |||||||
| 6.2 | Lift motor rating at S3 15% | kW | 0.8 | 0.8 | 0.8 | ||||||||
| 6.3 | Battery voltage/rated capacity | V/Ah | 24/20 | 24/30 | 24/40 | 24/60 | 24/20 | 24/30 | 24/40 | 24/60 | 48/20 | 48/30 | |
| 6.4 | Battery weight (± 5%) | kg | 6 | 7.8 | 10.2 | 13.2 | 6 | 7.8 | 10.2 | 13.2 | 10.2 | 13.2 | |
| Others | 7.1 | Type of drive control | DC power | ||||||||||
| 7.2 | Noise level at operator‘s ear | dB(A) | ≤70 | ||||||||||
| 7.3 | Steering type | Mechanical steering | |||||||||||
Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
