Product Details:
|
| Load Capacity: | 4T - 6T | Load Center: | 500mm |
|---|---|---|---|
| Lift Height: | 3000~5000mm | Fork Length: | 1220mm |
| Condition: | New | Min. Lifting Height: | 3000mm |
| Weight: | 4300KGS,1500Kg-4150kg | ||
| Highlight: | JAC walk behind pallet truck,1.5T walk behind pallet truck,JAC pedestrian operated pallet trucks |
||

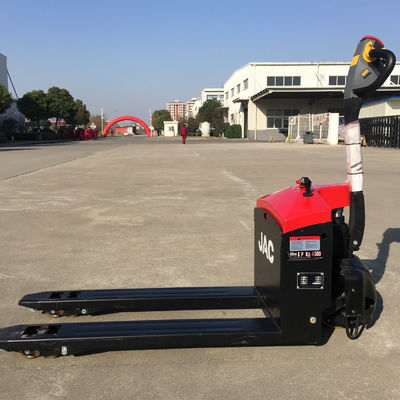

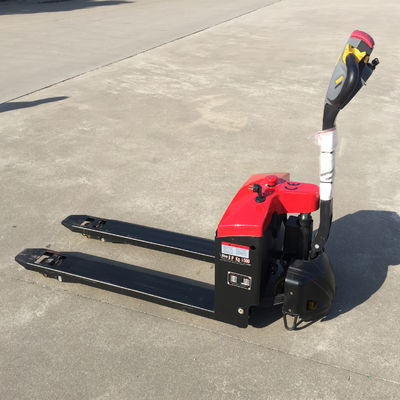

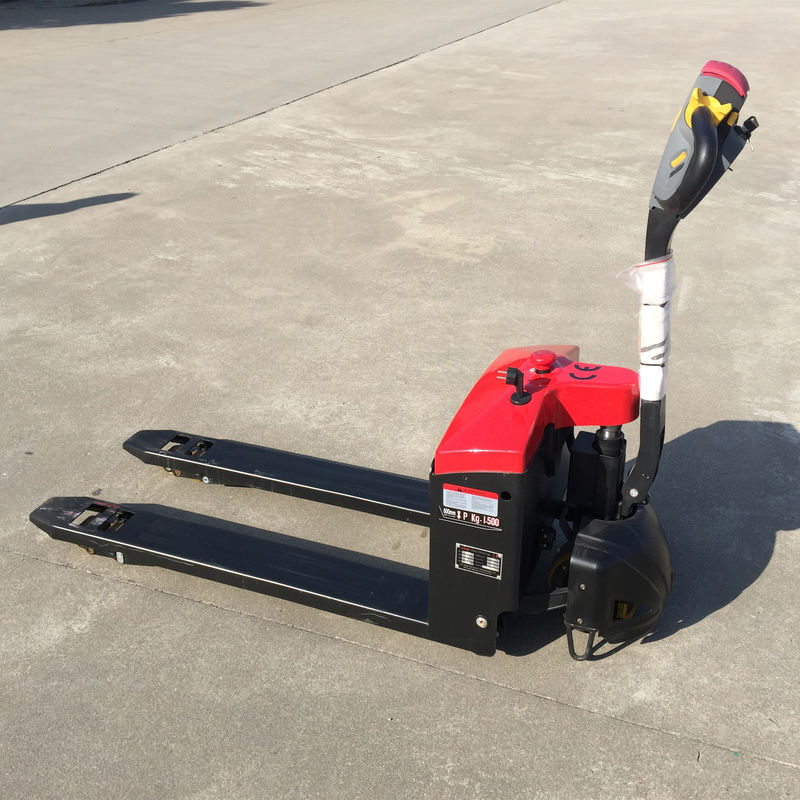

1.5T Walk Behind Electric Pallet Truck
Product description
New variable hydraulic pumps increase productivity by enabling faster lifting speeds, at the same time lowering the consumption. It has fewer connection points and cables so that the occurrence of error will be reduced.
Features
1. The light weight design offers quicker, smoother control of travel speed and direction.
2. Small size and moderate outside turning radius ensure operating in limited space.
3. Easy access of the battery compartment simplifies charging, care and maintenance of the battery.
4. The high strength metal cover provides great protection to the engine and tire, and prevents the operator from hurting.
5. The DC drive system features a fast, intelligent and stable electronics system that is reliable and easy to maintain. In addition, the electromagnetic brake is designed to improve safety.
Technical Parameters of Diesel Forklift
| 1.5 tons walking electric pallet truck | ||||
| Characteristics | 1.1 | Manufacturer | Unit | JAC |
| 1.2 | Model | CBD15 Ⅲ | ||
| 1.3 | Power unit | electric | ||
| 1.4 | Operation | pedestrian | ||
| 1.5 | Rated traction weight | kg | 1500 | |
| 1.6 | Load centre | mm | 600 | |
| 1.7 | Axle centre to fork face | mm | 875 | |
| 1.8 | Wheel base | mm | 1202 | |
| Weights | 2.1 | Service weight with battery | kg | 193/200 |
| Wheels/Tyres | 3.1 | Wheels type | PU | |
| 3.2 | Driving wheel size | Φ×w(mm) | Φ210×70 | |
| 3.3 | Bearing wheel size | Φ×w(mm) | Φ80×60 | |
| 3.4 | Wheels, number front/rear (x = driven) | 4/1x | ||
| 3.5 | Track width | mm | 410/535 | |
| Dimensions | 4.1 | Lift | mm | 200 |
| 4.2 | Overall height(With handle) | mm | 612/1195 | |
| 4.3 | lowered hength | mm | 85 | |
| 4.4 | Overall length | mm | 1628 | |
| 4.5 | Length to fork face | mm | 478 | |
| 4.6 | Overall width | mm | 560/685 | |
| 4.7 | Fork dimensions | s/e/l (mm) | 50/150/1150 | |
| 4.8 | Width of forks | mm | 560/685 | |
| 4.9 | Min.Ground clearance | mm | 35 | |
| 4.10 | Aisle width with pallet 1000 x 1200 across forks | mm | 1828 | |
| 4.11 | Aisle width with pallet 800 x 1200 along forks | mm | 1878 | |
| 4.12 | Min.Turning radius | mm | 1352 | |
| Performance | 5.1 | Travel speed,laden/unladen | km/h | 4.2/4.5 |
| 5.2 | The max Lifting speed, laden/unladen | mm/s | 22/25 | |
| 5.3 | Lowering speed, laden/unladen | mm/s | 38/28 | |
| 5.4 | Maximum climbing ability, with/without load | % | 6/10 | |
| 5.5 | Service brake | electromagnetic braking | ||
| Drive | 6.1 | Drive motor, 60 minute rating | kW | 0.75 |
| 6.2 | Lift motor rating at S3 15% | kW | 0.8 | |
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | no | ||
| 6.4 | Battery voltage/rated capacity | V/Ah | 2×12/65 | |
| 6.5 | Battery weight (± 5%) | kg | 40 | |
| Others | 7.1 | Type of drive control | DC power | |
| 7.2 | Noise level at operator‘s ear | dB(A) | 67 | |
| 7.3 | Steering type | Mechanical steering | ||
Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
