Product Details:
|

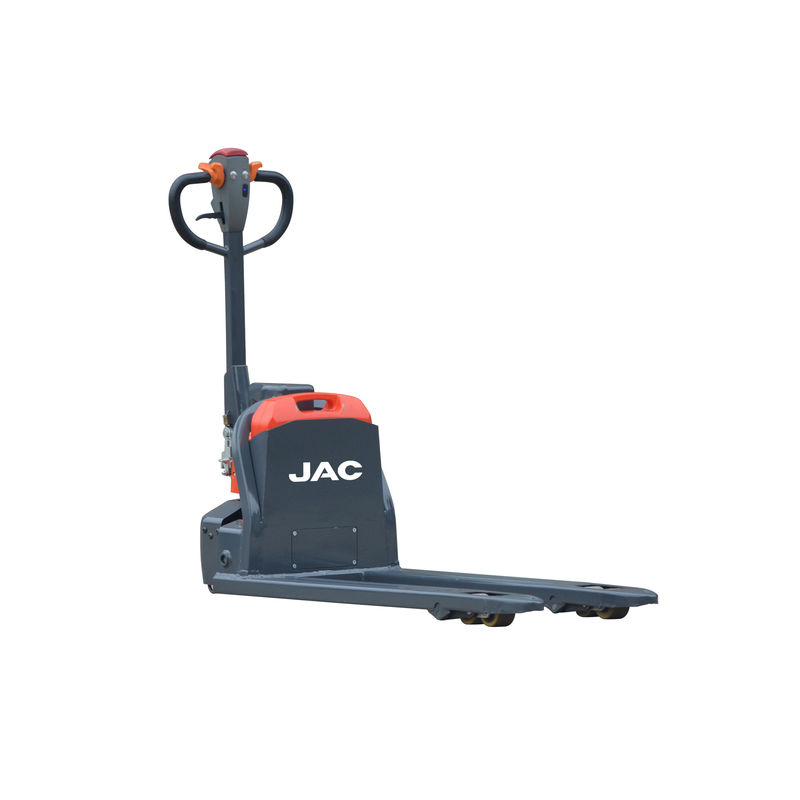

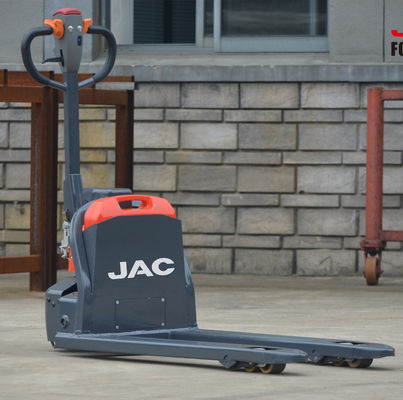

| Highlight: | JAC Warehouse Picker Truck,1.5ton Warehouse Picker Truck,JAC traveling order picker |
||
|---|---|---|---|
| Characteristics | 1.1 | Manufacturer | 单位 Unit | JAC |
| 1.2 | Model | CBD15 | ||
| 1.3 | Power unit | electric | ||
| 1.4 | Operation | 步行 pedestrian | ||
| 1.5 | Rated traction weight | kg | 1500 | |
| 1.6 | Load centre | mm | 600 | |
| 1.7 | Axle centre to fork face | mm | 875 | |
| 1.8 | Wheel base | mm | 1202 | |
| Weights | 2.1 | Service weight with battery | kg | 193/200 |
| Wheels/Tyres | 3.1 | Wheels type | PU | |
| 3.2 | Driving wheel size | Φ×w(mm) | Φ210×70 | |
| 3.3 | Bearing wheel size | Φ×w(mm) | Φ80×60 | |
| 3.4 | Wheels, number front/rear (x = driven) | 4/1x | ||
| 3.5 | Track width | mm | 410/535 | |
| Dimensions | 4.1 | Lift | mm | 200 |
| 4.2 | Overall height(With handle) | mm | 612/1195 | |
| 4.3 | lowered hength | mm | 85 | |
| 4.4 | Overall length | mm | 1628 | |
| 4.5 | Length to fork face | mm | 478 | |
| 4.6 | Overall width | mm | 560/685 | |
| 4.7 | Fork dimensions | s/e/l (mm) | 50/150/1150 | |
| 4.8 | Width of forks | mm | 560/685 | |
| 4.9 | Min.Ground clearance | mm | 35 | |
| 4.10 | Aisle width with pallet 1000 x 1200 across forks | mm | 1828 | |
| 4.11 | Aisle width with pallet 800 x 1200 along forks | mm | 1878 | |
| 4.12 | Min.Turning radius | mm | 1352 | |
| Performance | 5.1 | Travel speed,laden/unladen | km/h | 4.2/4.5 |
| 5.2 | The max Lifting speed, laden/unladen | mm/s | 22/25 | |
| 5.3 | Lowering speed, laden/unladen | mm/s | 38/28 | |
| 5.4 | Maximum climbing ability, with/without load | % | 6/10 | |
| 5.5 | Service brake | electromagnetic braking | ||
| Drive | 6.1 | Drive motor, 60 minute rating | kW | 0.75 |
| 6.2 | Lift motor rating at S3 15% | kW | 0.8 | |
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | no | ||
| 6.4 | Battery voltage/rated capacity | V/Ah | 2×12/65 | |
| 6.5 | Battery weight (± 5%) | kg | 40 | |
| Others | 7.1 | Type of drive control | DC power | |
| 7.2 | Noise level at operator‘s ear | dB(A) | 67 | |
| 7.3 | Steering type | Mechanical steering |
