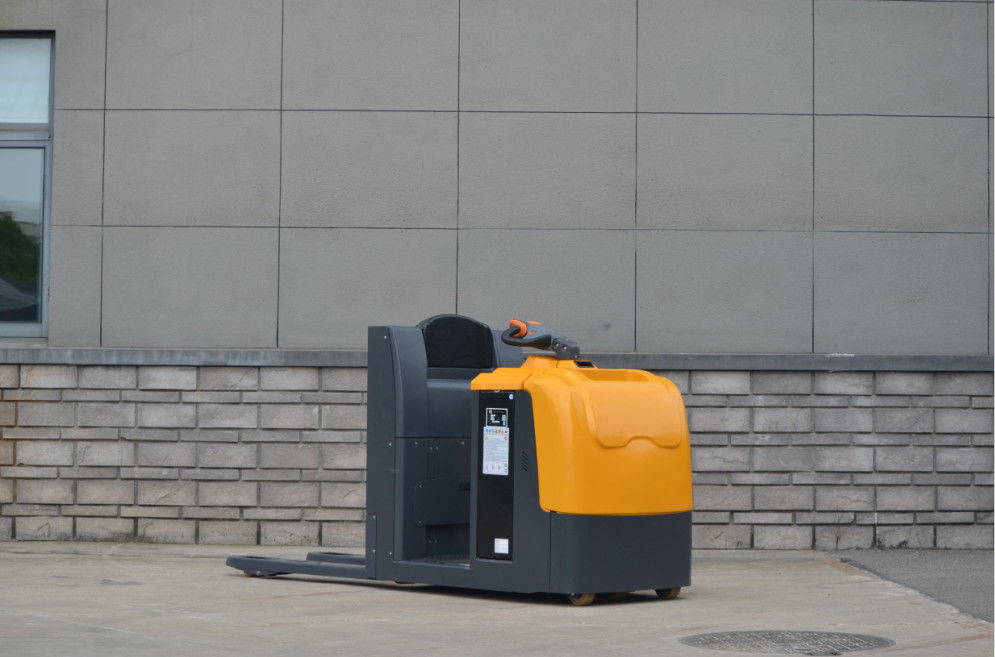

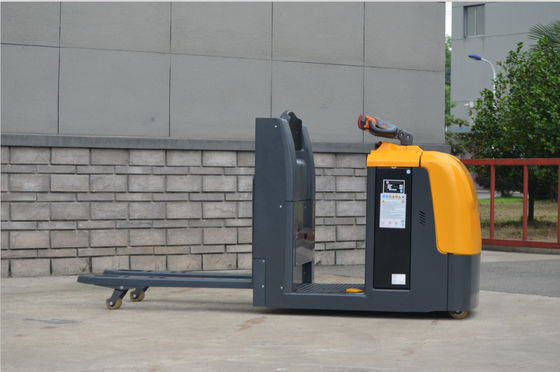

Product Details:
|
| Rated Traction Weight: | 2000kg | Power: | Electric |
|---|---|---|---|
| Battery: | Lead-acid Battery | Load Centre: | 600mm |
| Wheels Type: | PU | Lifting Height: | 200mm |
| Min.Turning Radius: | 2278mm | Width Of Forks: | 685/540mm |
| Fork Dimensions: | 50/170/1150mm | Battery Voltage: | 24V |
| Battery Rated Capacity: | 360Ah | ||
| Highlight: | 2000kg warehouse order picker,Llop warehouse order picker,2000kg warehouse llop truck |
||
| Characteristics | 1.1 | Manufacturer | JAC | |
| 1.2 | Model | JXD20 | ||
| 1.3 | Power unit | Electric Drive | ||
| 1.4 | Operation | Standing position | ||
| 1.5 | Rated traction weight | Q (kg) | 2000 | |
| 1.6 | Load centre | c (mm) | 600 | |
| 1.7 | Axle centre to fork face | x (mm) | 910 | |
| 1.8 | Wheel base | y (mm) | 2080 | |
| Weights | 2.1 | Service weight with battery | kg | 1090 |
| 2.2 | Bridge load, no-load drive/load-bearing | kg | 800/290 | |
| 2.3 | Axle load, full load driver/load end | kg | 1160/1880 | |
| Wheels/Tyres | 3.1 | Wheels type | Polyurethane | |
| 3.2 | Driving wheel size | Φ×w(mm) | Φ250×75 | |
| 3.3 | Bearing wheel size | Φ×w(mm) | Φ80×70 | |
| 3.4 | additional wheels(dimensions) | Φ×w(mm) | Φ115×55 | |
| 3.5 | Wheels, number front/rear (x = driven) | 1,2/4 | ||
| 3.6 | Wheelbase, drive end | b10 (mm) | 540 | |
| 3.7 | Wheel base, bearing end | b11 (mm) | 515/370 | |
| Dimensions | 4.1 | Lift | h3 (mm) | 200 |
| 4.2 | Operating position | h14 (mm) | 1090 | |
| 4.3 | lowered hength | h13 (mm) | 85 | |
| 4.4 | Overall length | l1 (mm) | 2517 | |
| 4.5 | Length to fork face | l2 (mm) | 1367 | |
| 4.6 | Overall width | b1/ b2 (mm) | 808 | |
| 4.7 | Fork dimensions | s/e/l (mm) | 50/170/1150 | |
| 4.8 | Width of forks | b5 (mm) | 685/540 | |
| 4.9 | Min.Ground clearance | m2 (mm) | 25 | |
| 4.10 | Aisle width with pallet 1000 x 1200 across forks | Ast (mm) | 2730 | |
| 4.11 | Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 2780 | |
| 4.12 | Min.Turning radius | Wa (mm) | 2278 | |
| Performance | 5.1 | Travel speed,laden/unladen | (km/h) | 5.2/5.5 |
| 5.2 | Lifting speed, with/without load | (mm/s) | 23/24 | |
| 5.3 | Lowering speed, with/without load | (mm/s) | 30/20 | |
| 5.4 | Maximum climbing ability, with/without load | (%) | 3/6 | |
| 5.5 | Service brake | Electromagnetism | ||
| Drive | 6.1 | Drive motor, 60 minute rating | (kW) | 1.5 |
| 6.2 | Lift motor rating at S3 15% | (kW) | 0.8 | |
| 6.3 | Battery according to DIN 43531/35/36 A,B,C,no | no | ||
| 6.4 | Battery voltage/rated capacity | (V/Ah) | 24/360 | |
| 6.5 | Battery weight(±5%) | (kg) | 310 | |
| Others | 7.1 | Type of drive control | AC speed control | |
| 7.2 | Noise level at operator‘s ear | (dB(A)) | ≤75 |
