Product Details:
|
| Power: | Diesel Engine | Load Capacity: | 12T |
|---|---|---|---|
| Load Center: | 500mm | Lift Height: | 3000~5000mm |
| Fork Length: | 1220mm | Condition: | New |
| Min. Lifting Height: | 3000mm | Weight: | 4300KGS,1500Kg-4150kg |
| Highlight: | JAC 12 ton forklift,Diesel 12 ton forklift,12 ton material handling forklift |
||

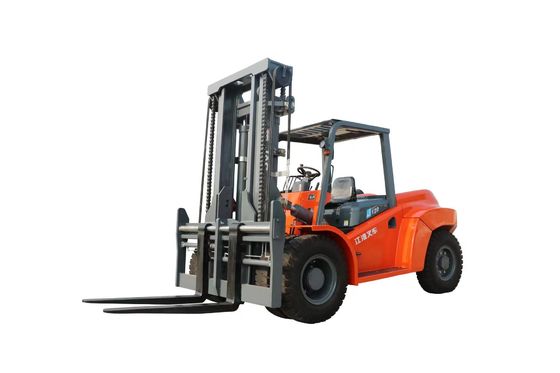

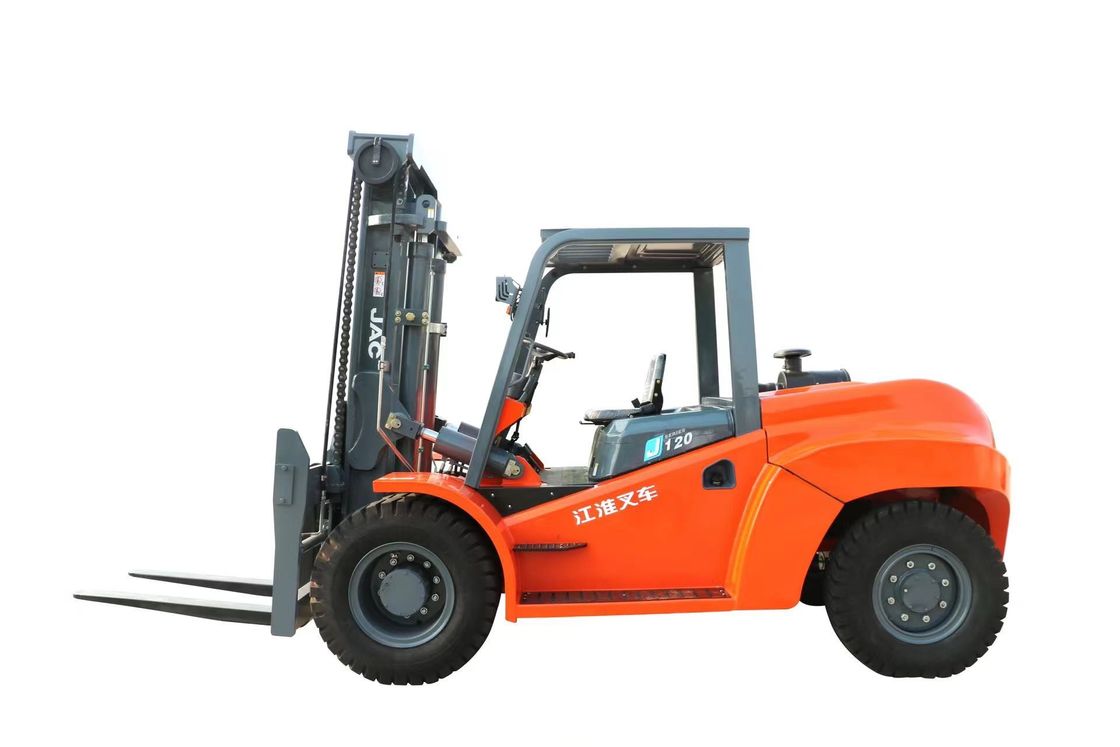

Diesel Forklift (12T Forklift Truck, J Series)/ JAC
Product description
The hydraulic drive system of H series diesel forklift provides stable and efficient driving effect.
The hyperbolic design for the main reducer of drive axle helps realize smooth meshing. Apart from the low noise, this design extends the lifespan of the drive axle, as well.
Eco-friendly, the hood of the 5-7T forklift truck is installed with built-in heat-insulated and sound absorbing material. The gap is filled with rubber to absorb vibration and reduce noise during operation.
Features
1. Our diesel forklift is meticulously designed according to ergonomics, which effectively enlarges the working space and minimizes the fatigue of the operator.
2. Thanks to the drum brake, the sensitive braking effect of the heavy-duty forklift truck makes this product particularly safe and reliable for use..
.
3. The natural and simple design of the balance weight eliminates the influence on the appearance caused by deformation of the side hood..
4. The storage battery box can be opened from its side for outstanding waterproofness and maintainability.
Technical Parameters of Diesel Forklift
| Model | Unit | CPCD120J |
| Power type | Diesel | |
| Rated load | kg | 12000 |
| Load center distance | mm | 600 |
| Lift height | mm | 3000 |
| Free lift height | mm | 85 |
| Fork size L×W×T | mm | 1520×175×85 |
| Minimum turning radius | mm | 4350 |
| Maximum travel speed /Full load | km/h | 26 |
| Maximum travel speed/ No load | km/h | 28 |
| Fork height at maximum lift (with backrest) | mm | 4655 |
| Standard Mast height | mm | 2510 |
| Front wheel | 10.00-20-14PR | |
| Rear wheel | 10.00-20-14PR | |
| Wheelbase | mm | 2950 |
| Front wheel/rear wheel | mm | 1674/1890 |
| Self weight/Without load | Kg | 16000 |
| Battery/ Voltage/capacity | V/Ah | 24/160 |
| Engine/ Model | CA6DF3 Xichai,China | |
| Engine/Rated output | kw/r.p.m | 118/2200 |
| Engine/ Rated torque | Nm/r.p.m | 640/1300-1700 |
| Tire type (FR/RR) | Pneumatic | |
| Number of wheels (FR/RR) | 4/2 |
Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
