Product Details:
|
| Load Capacity: | 4T - 6T | Load Center: | 500mm |
|---|---|---|---|
| Lift Height: | 3000~5000mm | Fork Length: | 1220mm |
| Condition: | New | Min. Lifting Height: | 3000mm |
| Weight: | 4300KGS,1500Kg-4150kg | ||
| Highlight: | Integrated JAC Forklift,4T JAC Forklift,Hydraulic 5t electric forklift |
||

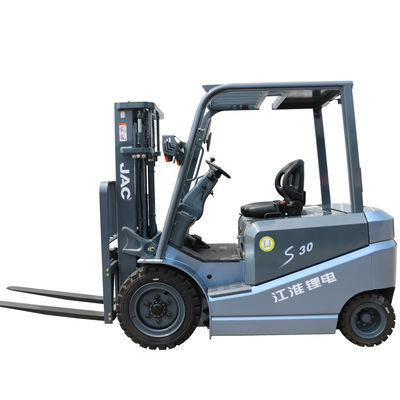

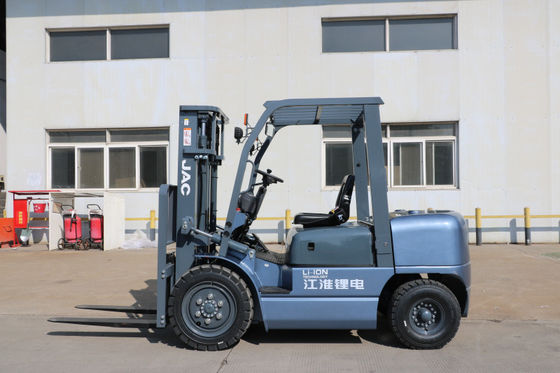

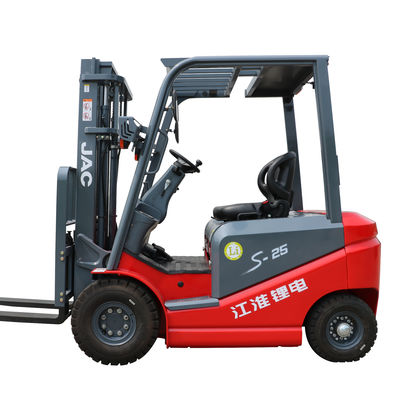

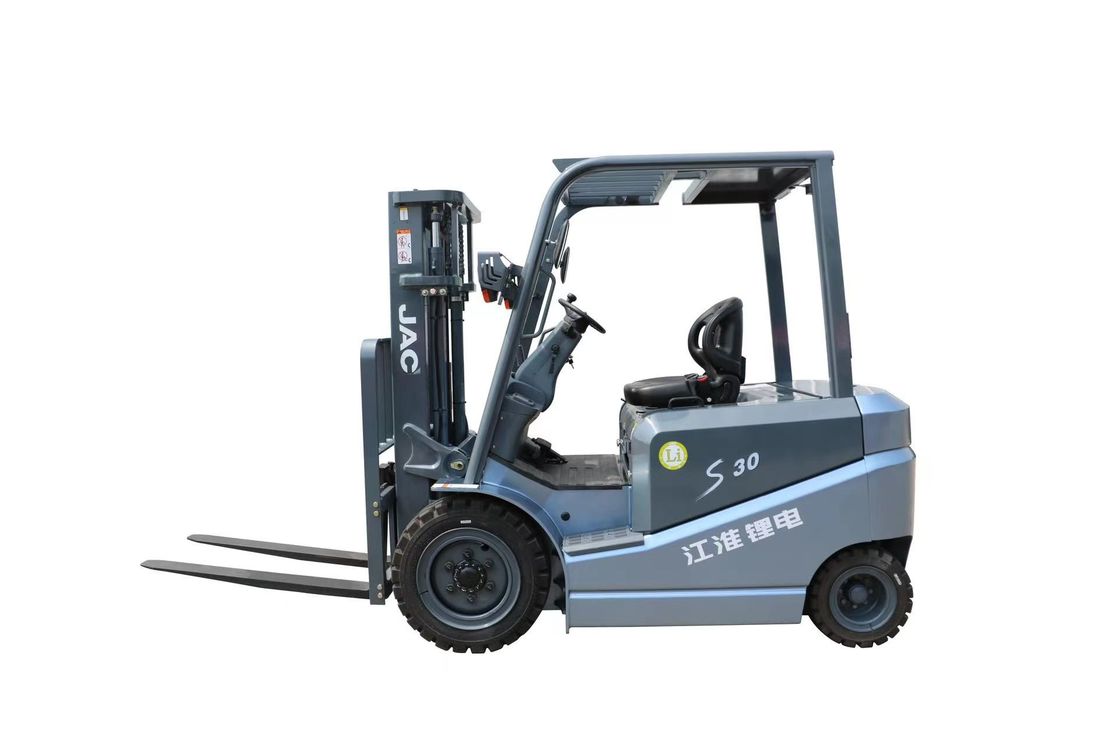

Electric Forklift(4-6T Four Wheel Forklift, S Series)
Product description
CPD45S/CPD50S/CPD60S electric forklifts have the advantages of short braking time and low energy consumption. They are equipped with wet-type multi-disk brake which is very durable and provides excellent braking effect. These electric forklifts use integral drive design that their gearbox oil can lubricate gears to reduce the maintain cost. These electric forklifts use lithium battery as power source. In addition, they have power regeneration function to prolong the service time that it recovers the electric quantity of battery when the electric forklift is braking, slowing down or steering.
Features
1. The integrated drive axle and gearbox structure ensures high transmission efficiency and low noise.
2. Wet-type multi-disk brake is very durable and provides excellent braking effect..
3. This electric forklifts uses lithium battery as power source. The power regeneration function prolongs its working time which enables recovery of electric quantity when the electric forklift is braking, slowing down or steering.
4. The meter real-time displays steering angle to let the driver know the tire direction. When its speed is more than 5km/h and steering angle is over the set value, the electric forklift will automatically limit the speed to ensure the safety.
5. Hydraulic system uses 24° cone O-ring seal which provides reliable sealing and avoids leakage.
Technical Parameters of Diesel Forklift
| Model | Unit | CPD45S | CPD50S | CPD60S | |
| Powe type | Battery | ||||
| Rated load | kg | 4500 | 5000 | 6000 | |
| Load center distance | mm | 500 | 500 | 600 | |
| Lift height | mm | 3000 | |||
| Fork size | mm | 1220×150×50 | 1220×150×50 | 1220×150×60 | |
| Minimum turning radius | mm | 2704 | 2704 | 2780 | |
| Maximum travel speed/Full load | km/h | 13 | 13 | 11.5 | |
| Maximum travel speed/No load | 14 | 14 | 14 | ||
| Fork height at maximum lift (with backrest) | mm | 4270 | 4270 | 4280 | |
| Standard Mast height | mm | 2245 | 2245 | 2345 | |
| Front wheel | 28×12.5-15 | ||||
| Rear wheel | 7.00-12 | ||||
| Tread Front wheel/rear wheel | mm | 1200/1130 | |||
| Self weight Without load | kg | 7400 | 7800 | 8950 | |
| Battery Voltage/capacity | V/Ah | 80/700 | 80/720 | 80/720 | |
| Motor/Traveling | KW | 11×2 | |||
Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
