Product Details:
|
| Power: | Diesel Engine | Load Capacity: | 5T - 12T |
|---|---|---|---|
| Load Center: | 500mm | Lift Height: | 3000~5000mm |
| Fork Length: | 1220mm | Condition: | New |
| Min. Lifting Height: | 3000mm | Weight: | 4300KGS,1500Kg-4150kg |
| Highlight: | Diesel cpcd50 forklift,Compact cpcd50 forklift,12T compact forktrucks |
||

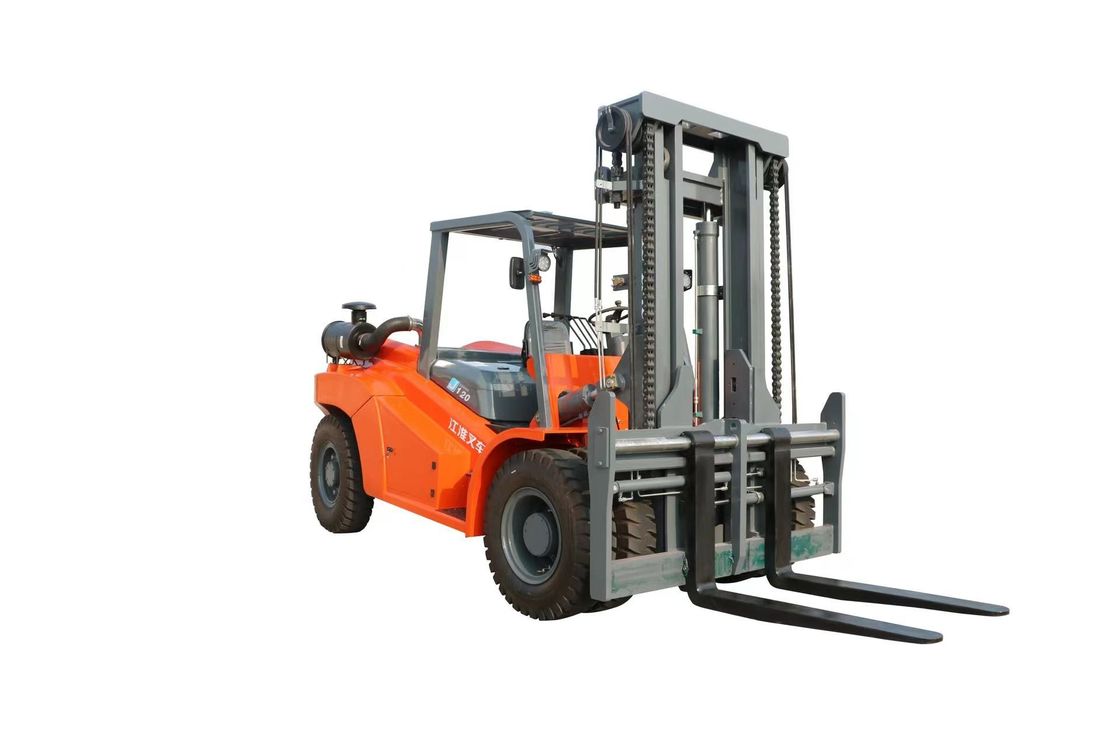

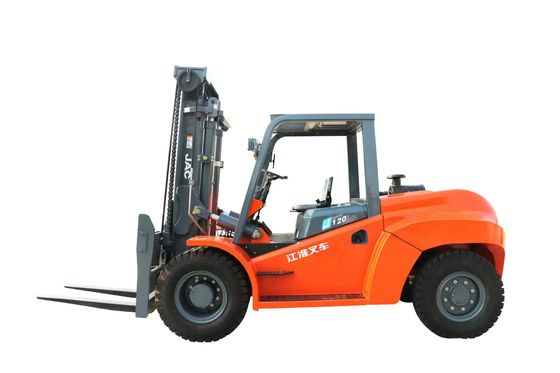

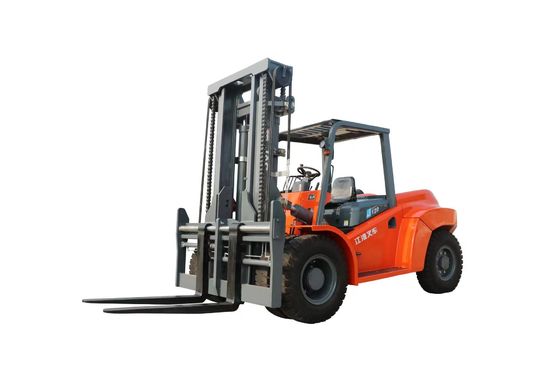

Diesel Forklift (5-12T Internal Combustion Counterweight Forklift Truck, J Series)
Product description
Electro-hydraulic gearbox features easy operation. The CPCD120 is integrated with multi-plate clutch for quick speed control,enabling stable operation.
Reinforced drive axle enables it to be more suitable for use under harsh working conditions.
A protective sleeve is added to the steering cylinder to reduce the external force damage of the cylinder.
Low-loss multi way valve application ensures lifting system efficiency is increased by 10%, oil temperature decreased by 12 ℃.
Features
1. The integral overhead guard can stand high pressure, which is rainproof and sun-proof, making it suitable for outdoor operation.
2.180L large-capacity fuel tank provides longer working time for a single refueling.
3. With counterbalance mesh cover, the engine and control system can be well-protected for safe operation.
4. Ratchet-type brake system requires less effort from the operator to set.
Technical Parameters of Diesel Forklift
| Model | Unit | CPCD50J | CPCD60J | CPCD70J | CPCD80J | CPCD100J | CPCD120J |
| Power type | Diesel | Diesel | |||||
| Rated load | kg | 5000 | 6000 | 7000 | 8000 | 10000 | 12000 |
| Load center distance | mm | 600 | 600 | ||||
| Lift height | mm | 3000 | 3000 | ||||
| Free lift height | mm | 172 | 182 | 150 | 85 | ||
| Fork size L×W×T | mm | 1220×150×60 | 1220×150×70 | 1220×150×80 | 1370×175×85 | 1520×175×85 | |
| Minimum turning radius | mm | 3580 | 4280 | 4350 | |||
| Maximum travel speed /Full load | km/h | 22 | 20 | 26 | |||
| Maximum travel speed/ No load | km/h | 25 | 24 | 28 | |||
| Fork height at maximum lift (with backrest) | mm | 4415 | 4280 | 4655 | |||
| Standard Mast height | mm | 2510 | 2845 | 2510 | |||
| Front wheel | 8.25-15-14PR | 8.25-15-18PR | 9.00-20-14PR | 10.00-20-14PR | |||
| Rear wheel | 8.25-15-14PR | 8.25-15-18PR | 9.00-20-14PR | 10.00-20-14PR | |||
| Wheelbase | mm | 2300 | 2800 | 2950 | |||
| Front wheel/rear wheel | mm | 1520/1700 | 1600/1700 | 1674/1890 | |||
| Self weight/Without load | Kg | 8760 | 9530 | 9970 | 10300 | 13640 | 16000 |
| Battery/ Voltage/capacity | V/Ah | 24/160 | 24/160 | ||||
| Engine/ Model | YC4A125-T300 Yuchai,China | CA6DF3 Xichai,China | |||||
| Engine/Rated output | kw/r.p.m | 92/2200 | 118/2200 | ||||
| Engine/ Rated torque | Nm/r.p.m | 180/1600-1800 | 640/1300-1700 | ||||
| Tire type (FR/RR) | Pneumatic | Pneumatic | |||||
| Number of wheels (FR/RR) | 4/2 | 4/2 | |||||
Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
