Product Details:
|
| Power: | Diesel Engine | Load Capacity: | 1T - 5T |
|---|---|---|---|
| Load Center: | 500mm | Lift Height: | 3000~5000mm |
| Fork Length: | 1220mm | Condition: | New |
| Min. Lifting Height: | 3000mm | Weight: | 4300KGS,1500Kg-4150kg |
| Highlight: | 4T JAC Forklift,Pneumatic JAC Forklift,4.5T electric warehouse forklift |
||

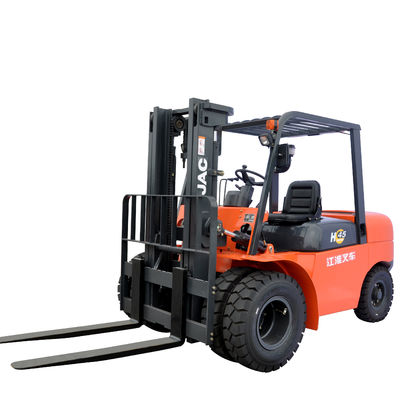

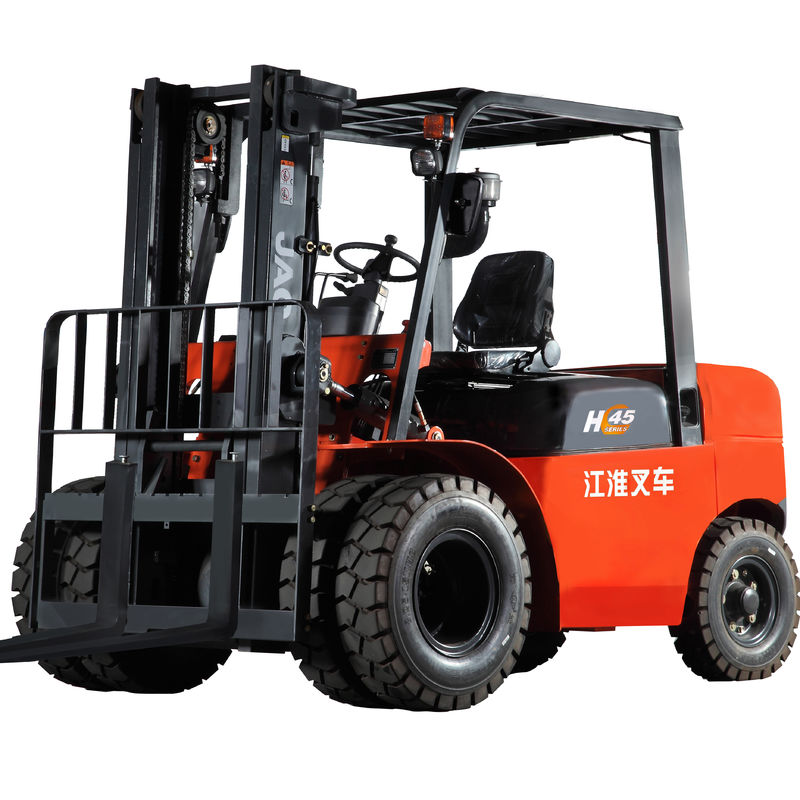

Diesel Forklift (4-4.5T Forklift Truck, H Series)/ JAC / Lift Height Triplex Mast
Product description
The air intake system installed at high level, as well as the two air filters of the warehouse equipment, offers full protection to the engine of the diesel forklift.
The drum brake and the vacuum servo enable convenient and sensitive car braking.
Smartly designed, the V shape engine mount of the diesel forklift effectively reduces the vibration during operation and creates comfortable working environment for the operator.
Features
1. To extend the lifespan of the bearing and the kingpin, oilless bearing is adopted for self-lubrication.
2. The tailstock of the material handling equipment adopts integrated design to enhance the shock resistance performance of the product. The technology has been granted the national patent.
.
3. Our patented technologies-10T main reducing gear and the axle housing effectively improve the bearing capacity of the drive axle.
4. Since the fork arm carrier of the container forklift truck is installed with 6 idler wheels, the diesel forklift is quite suitable for high-strength working conditions.
Technical Parameters of Diesel Forklift
| Model | Unit | CPCD45H | CPCD50H |
| Power type | Diesel | ||
| Rated load | kg | 4500 | 5000 |
| Load center distance | mm | 500 | |
| Lift height | mm | 3000 | |
| Free lift height | mm | 150 | |
| Fork size L×W×T | mm | 1070×150×50 | |
| Minimum turning radius | mm | 2750 | 2970 |
| Maximum travel speed /Full load | km/h | 19 | 19 |
| Maximum travel speed/ No load | km/h | 21 | 22 |
| Fork height at maximum lift (with backrest) | mm | 4230 | |
| Standard Mast height | mm | 2230 | |
| Front wheel | 2-300-15-20PR | ||
| Rear wheel | 2-7.00-12-12PR | ||
| Wheelbase | mm | 2000 | 2100 |
| Front wheel/rear wheel | mm | 1182/1202 | |
| Self weight/Without load | Kg | 6550 | 7000 |
| Battery/ Voltage/capacity | V/Ah | 24/160 | |
| Engine/ Model | 4DX23 Xichai,China | ||
| Engine/Rated output | kw/r.p.m | 60/2200 | |
| Engine/ Rated torque | Nm/r.p.m | 320/1400-1700 | |
| Tire type (FR/RR) | Pneumatic | ||
| Number of wheels (FR/RR) | 2/2 | ||
Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
