Product Details:
|
| Power: | Diesel Engine | Load Capacity: | 1T - 5T |
|---|---|---|---|
| Load Center: | 500mm | Lift Height: | 3000~5000mm |
| Fork Length: | 1220mm | Condition: | New |
| Min. Lifting Height: | 3000mm | Weight: | 4300KGS,1500Kg-4150kg |
| Highlight: | Diesel forklift material handling equipment,5T forklift material handling equipment,5T paper roll clamp truck |
||

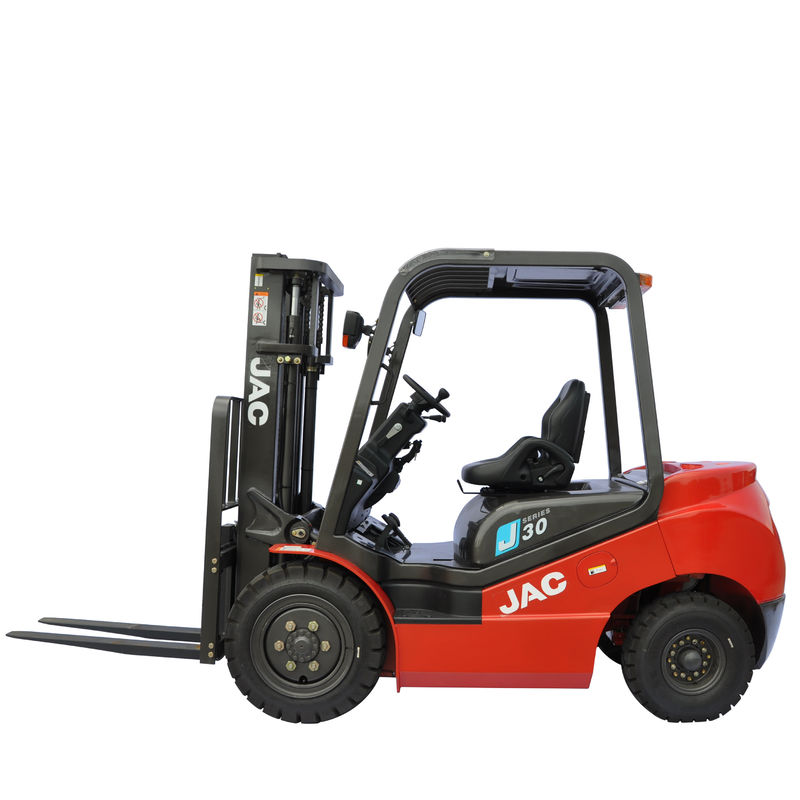

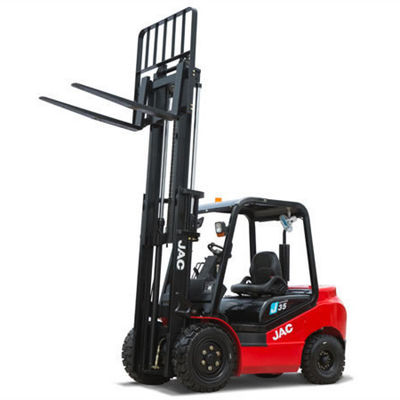

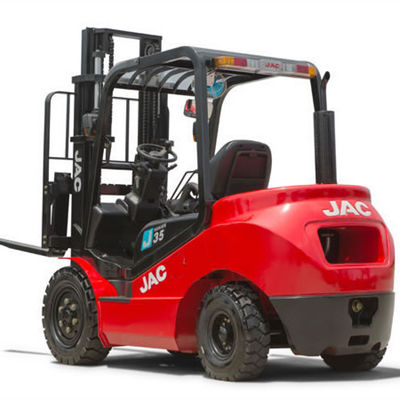

Diesel Forklift 3-3.5T Forklift Truck, H Series / Trucks /with Isuzu Japan Engine
Product description
The diesel forklift of J series is engineered in enclosed structure to reduce the noise and improve the comfort during operation.
Newly-developed design for the balance weight makes the forklift truck quite attractive.
The spacious operation room can relieve the fatigue of the operator.
Features
1. The instrument panel of the diesel powered lift truck is installed at right hand side. The simple design makes it easier for the operator to read the parameters.
2. Practical and eye-catching, our diesel forklift adopts the fuel tank cap for cars.
.
3. Wide field of view for high safety and high working efficiency.
4. Thanks to the adjustable seat and steering wheel, the working space can be enlarged. The comfortable environment brings worker a good mood.
Technical Parameters of Diesel Forklift
| Model | Unit | CPCD30J | CPCD35J |
| Power type | Diesel | ||
| Rated load | kg | 3000 | 3500 |
| Load center distance | mm | 500 | |
| Lift height | mm | 3000 | |
| Free lift height | mm | 155 | |
| Fork size L×W×T | mm | 1070×125×45 | 1070×125×50 |
| Minimum turning radius | mm | 2500 | 2575 |
| Maximum travel speed /Full load | km/h | 19 | 18 |
| Maximum travel speed/ No load | km/h | 19.5 | 18.5 |
| Fork height at maximum lift (with backrest) | mm | 4260 | |
| Standard Mast height | mm | 2065 | |
| Front wheel | 28×9-15-14PR | ||
| Rear wheel | 6.50-10-10PR | ||
| Wheelbase | mm | 1700 | |
| Front wheel/rear wheel | mm | 1000/970 | |
| Self weight/Without load | Kg | 4300 | 4820 |
| Battery/ Voltage/capacity | V/Ah | 12/80 | |
| Engine/ Model | Isuzu,Japan C240NKFG-01 | Yanmar,Japan 4TNE98 | |
| Engine/Rated output | kw/r.p.m | 34.3～36.5/2500 | 42.1/2300 |
| Engine/ Rated torque | Nm/r.p.m | 137.7/1800 | 177.6～196.3/1700 |
| Tire type (FR/RR) | Pneumatic | ||
| Number of wheels (FR/RR) | 2/2 | ||
Related Information
HS Code: 8427209000
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
