Product Details:
|
| Power: | Diesel Engine | Load Capacity: | 3.5T |
|---|---|---|---|
| Load Center: | 500mm | Lift Height: | 3000~5000mm |
| Fork Length: | 1220mm | Condition: | New |
| Min. Lifting Height: | 3000mm | Weight: | 4300KGS,1500Kg-4150kg |
| Highlight: | OEM Diesel Forklift Truck,5k Diesel Forklift Truck,3.5 T 5k warehouse forklift |
||

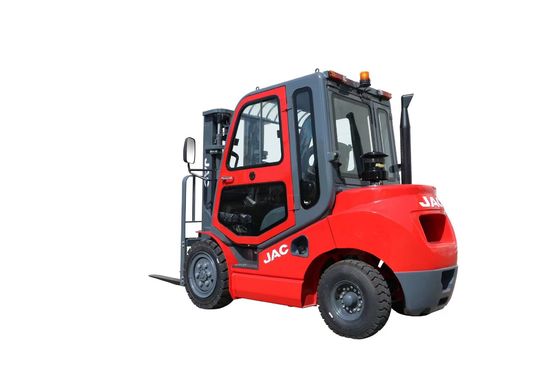

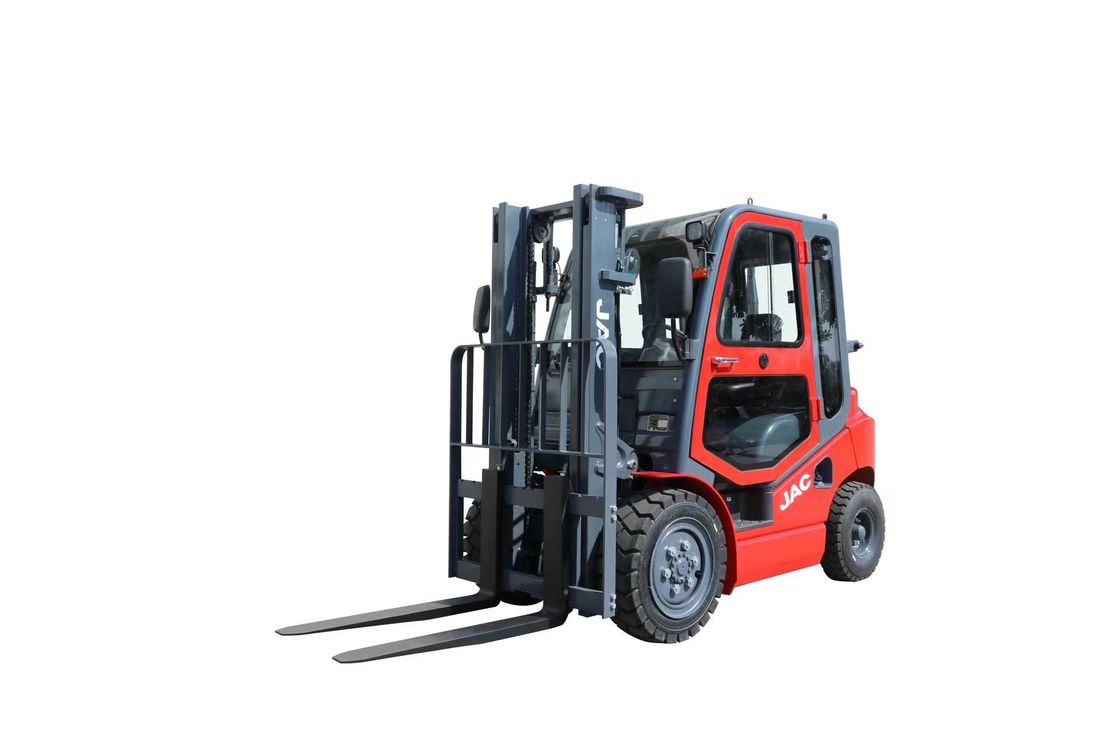

Diesel Forklift (3T Forklift Truck, J Series) / Forklift with Cabin Diesel /JAC /Trucks / Lift Height Triplex Mast
Product description
The H series diesel forklift comes with the load capacity from 2 tons to 2.5 tons. It is equipped with first class drive system and high quality gearbox.
For optimal heat dissipation effect, we particularly manufacture the heavy-duty lift truck with aluminium radiator.
The cyclone filter, as well as the air inlet system installed at high level, effectively extends the lifespan of the engine.
The air intake system of the diesel forklift is installed at high level to prevent the dust from entering the engine, so the lifespan of the engine is extended, accordingly.
Features
1.The H series diesel forklift comes with the load capacity from 2 tons to 2.5 tons. It is equipped with first class drive system and high quality gearbox.
2. For optimal heat dissipation effect, we particularly manufacture the heavy-duty lift truck with aluminium radiator.
.
3. The air intake system of the diesel forklift is installed at high level to prevent the dust from entering the engine, so the lifespan of the engine is extended, accordingly.
4. Thanks to the adjustable seat and steering wheel, the working space can be enlarged. The comfortable environment brings worker a good mood.
Technical Parameters of Diesel Forklift
| Model | Unit | CPCD35J | |
| Power type | Diesel | ||
| Rated load | kg | 3000 | 3500 |
| Load center distance | mm | 500 | |
| Lift height | mm | 3000 | |
| Free lift height | mm | 155 | |
| Fork size L×W×T | mm | 1070×125×45 | 1070×125×50 |
| Minimum turning radius | mm | 2500 | 2575 |
| Maximum travel speed /Full load | km/h | 19 | 18 |
| Maximum travel speed/ No load | km/h | 19.5 | 18.5 |
| Fork height at maximum lift (with backrest) | mm | 4260 | |
| Standard Mast height | mm | 2065 | |
| Front wheel | 28×9-15-14PR | ||
| Rear wheel | 6.50-10-10PR | ||
| Wheelbase | mm | 1700 | |
| Front wheel/rear wheel | mm | 1000/970 | |
| Self weight/Without load | Kg | 4300 | 4820 |
| Battery/ Voltage/capacity | V/Ah | 12/80 | |
| Engine/ Model | Isuzu,Japan C240NKFG-01 | Yanmar,Japan 4TNE98 | |
| Engine/Rated output | kw/r.p.m | 34.3～36.5/2500 | 42.1/2300 |
| Engine/ Rated torque | Nm/r.p.m | 137.7/1800 | 177.6～196.3/1700 |
| Tire type (FR/RR) | Pneumatic | ||
| Number of wheels (FR/RR) | 2/2 | ||
Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
HS Code: 8427209000
