Product Details:
|
| Power: | Electric Platform Truck | Load Capacity: | 1T - 3T |
|---|---|---|---|
| Load Center: | 500mm | Lift Height: | 3000~5000mm |
| Fork Length: | 1220mm | Condition: | New |
| Min. Lifting Height: | 3000mm | Weight: | 4300KGS,1500Kg-4150kg |
| Highlight: | 1T Electric Platform Truck,3T Electric Platform Truck,1T burden cart |
||

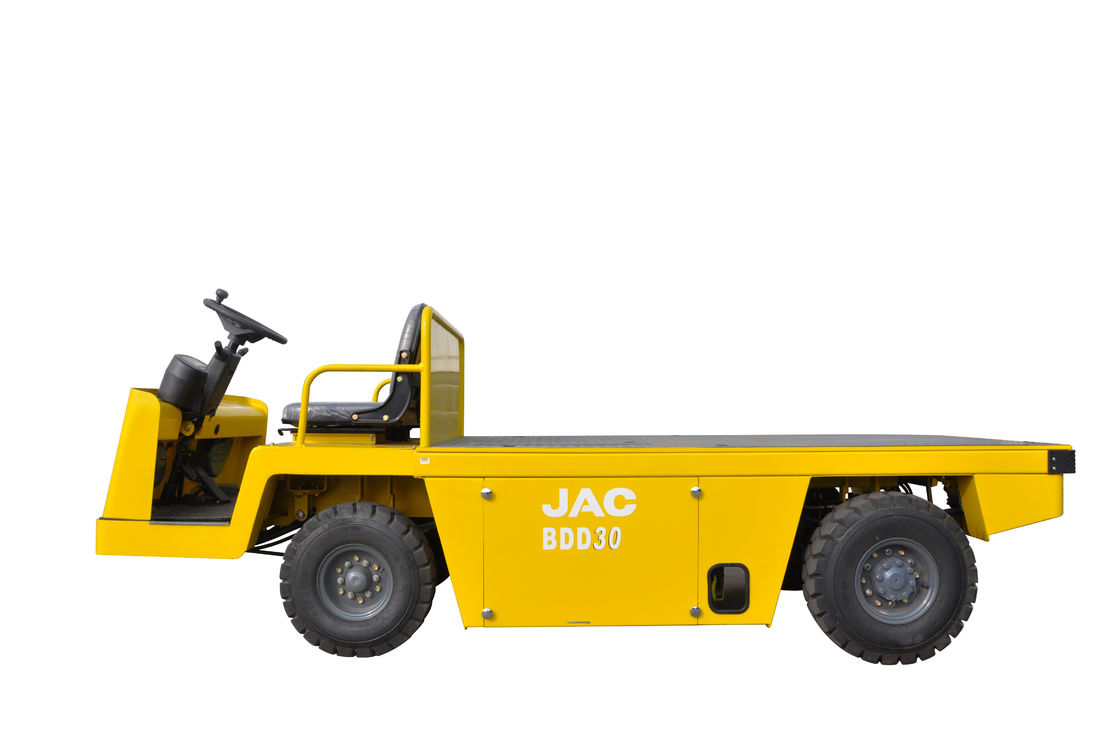

Electric Platform Truck / BDD10-30
Product description
Thanks for your interest in our electric platform truck. The electric platform truck, usually used as an industrial towing vehicle, is designed to balance the following contradicting requirements, on the one hand it should feature compact size due to narrow working aisles and other infrastructural bottlenecks, on the other hand it should also provide a high towing capacity, especially for use on ramps.
Features
1.JAC BDD10 electric platform truck is a piece of material handling equipment that is built to provide great maneuverability, reliability and ruggedness to meet all your demanding applications. Featuring a 1T load capacity and 2610mm turning radius, our tow tractor is widely used in general warehousing and manufacturing industries.
2. As an established electric platform truck manufacturer in China, we at JAC are dedicated to providing customers with high quality tow tractors. Hence, we introduce the latest equipment, employ highly trained staff and strictly manufacture our electric platform trucks in accordance with ISO9001 standards. In order to fulfill each of our customer's demands, we also offer other products such as diesel forklifts, electric forklifts, electric stackers, and more. Having the advantages of reliable quality and reasonable prices, our products are sought after in Australia, India, Russia, Philippines, Saudi Arabia, Italy, among other countries.
Technical Parameters of Diesel Forklift
| Model | Unit | BDD10 |
| Powe type | Battery | |
| Drive type | Seat type | |
| Rated load | kg | 1000 |
| Drawbar height | mm | 274/354 |
| Weight (with battery) | kg | 980 |
| Platform size | mm | 1400×1000×570 |
| Overall length | mm | 2750 |
| Overall width | mm | 1000 |
| Overall height | mm | 1139 |
| Minimum turning radius | mm | 2650 |
| Minimum right angle aisle width | mm | 2850 |
| Maximum travel speed/Full load | km/h | 8 |
| Maximum travel speed/No load | 10 | |
| Tire type (FR/RR) | Pneumatic | |
| Front wheel | 5.00-8 | |
| Rear wheel | 5.00-8 | |
| Battery Voltage/capacity | V/Ah | 24/275 |
| Motor/Traveling | KW | 3 |
Related Information
HS Code: 8427209000
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
