Product Details:
|
| Load Capacity: | 1T - 5T | Load Center: | 500mm |
|---|---|---|---|
| Lift Height: | 3000~5000mm | Fork Length: | 1220mm |
| Condition: | New | Min. Lifting Height: | 3000mm |
| Weight: | 4300KGS,1500Kg-4150kg | ||
| Highlight: | Compact rough terrain forklift trucks,Material Handling rough terrain forklift trucks,Compact rough terrain lift truck |
||

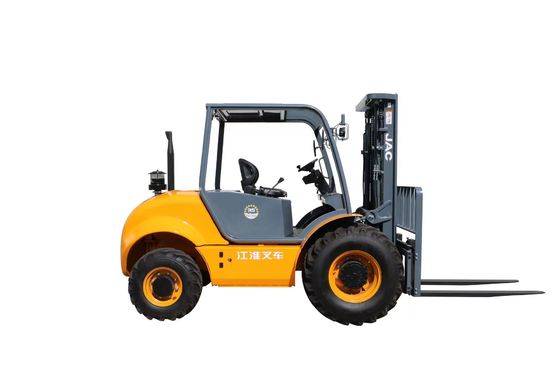

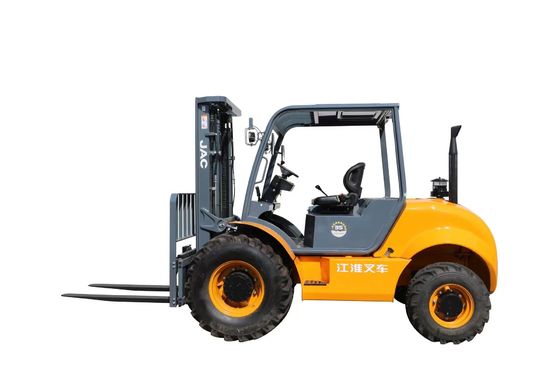

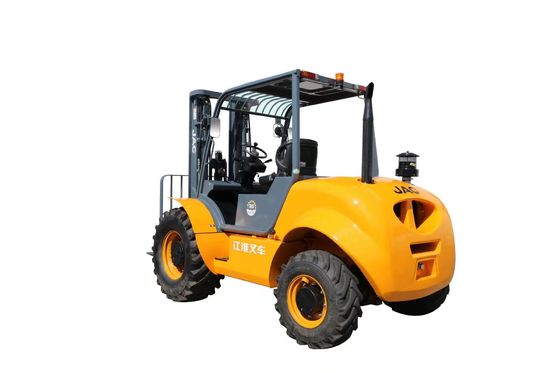

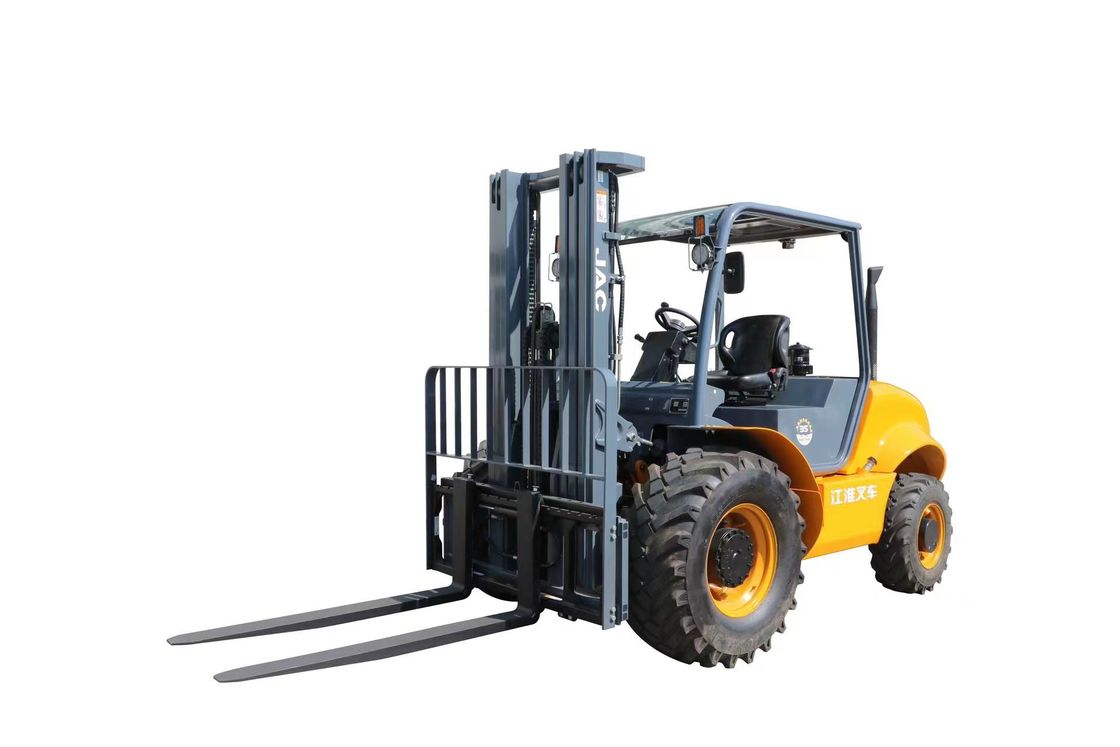

Rough Terrain Forklift / deep treads enabling / without sliding or slipping
Product description
The rough terrain forklift is an ideal piece of material handling equipment for outdoor construction and loading activities. This selection of forklift truck features large pneumatic tires, usually with deep treads enabling the operators to drive on rough road or ground cover without sliding or slipping. In addition, all terrain forklifts can also work well on paved ground, allowing one unit to be transported from outside area into warehouses and other places.
Features
1. It is a compact forklift with a two-wheel drive system.
2. With steering angle from 43.6° to 70°, the lift truck comes with very small turning radius.
3. The rough terrain forklift is designed with a specially designed differential to suit all terrain conditions. The automatic differential lock provides the forklift truck with ultimate traction force under inclement weather and rough terrain conditions.
4. The travel system and hydraulic system are positioned at the front of the forklift truck, conforming to our ergonomic design philosophy.
5. With fully adjustable tilt steering wheel and a suspension seat, the rough terrain forklift accommodates operators of all sizes.
Technical Parameters of Diesel Forklift
| Model | Unit | CPCD35R |
| Power type | Diesel | |
| Rated load | kg | 3500 |
| Load center distance | mm | 500 |
| Lift height | mm | 3000 |
| Free lift height | mm | 244 |
| Fork size L×W×T | mm | 1220×125×50 |
| Minimum turning radius | mm | 2870 |
| Maximum travel speed /Full load | km/h | 21 |
| Maximum gradeability | % | 14.8 |
| Fork height at maximum lift (with backrest) | mm | 4390 |
| Standard Mast height | mm | 2253 |
| Front wheel | 14-17.5 14PR ESK308 | |
| Rear wheel | 27×10-12 14PR | |
| Wheelbase | mm | 1880 |
| Front wheel/rear wheel | mm | 1250/1220 |
| Self weight/Without load | Kg | 5240 |
| Battery/ Voltage/capacity | V/Ah | 12/105 |
| Engine/ Model | 4TNE 98 YANMAR, Japan | |
| Engine/Rated output | kw/r.p.m | 42.1/2300 |
| Engine/ Rated torque | Nm/r.p.m | 177.6～196.3/1700±100 |
| Tire type (FR/RR) | Pneumatic | |
| Number of wheels (FR/RR) | 2/2 |
Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
