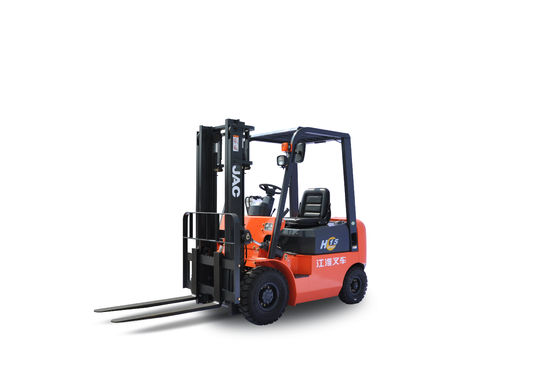

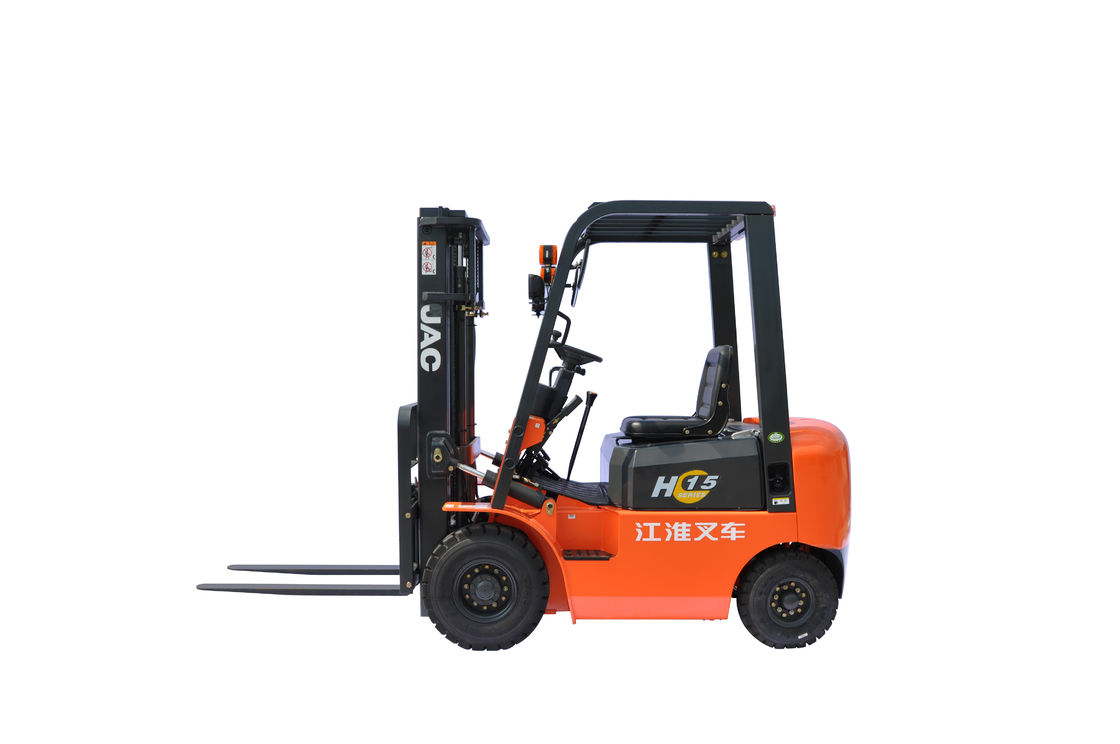

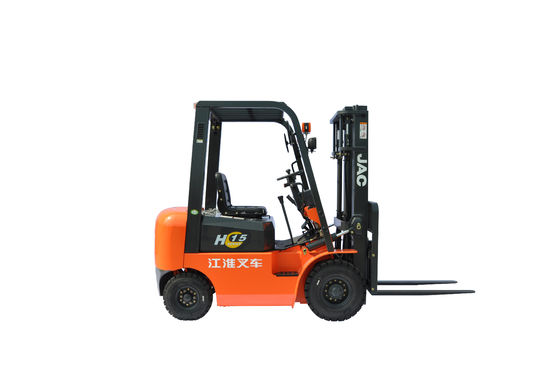

1-1.8T Diesel Forklift H Series
Product description
The diesel forklift of 1-1.8 ton H series is constructed based on ergonomics. The seat location and the steering wheel angle can be adjusted freely to obtain large working space. The special design creates comfortable working environment and minimizes the fatigue of the operator.
The combined type taillight for the warehouse equipment is installed at the top of the overhead guard. Apart from the nice appearance, the eye-catching design makes the forklift truck quite safe for use at night. The appearance design of the diesel forklift is granted national patent.
The cyclone filter, as well as the air inlet system installed at high level, effectively extends the lifespan of the engine.
Hydraulic load-free induction steering gear and transverse oil cylinder steering system enable labour-saving operation. The steering axle is capable of affording 300,000 times fatigue test.
Features
1. The eco-friendly design of the diesel forklift offers full protection to both the user and the environment.
2. Small overall dimension, low centre of gravity, small turning radius, and excellent manoeuvrability
.
3. The frame and the steering axle of the material handling equipment are engineered with shock absorber to reduce the impact and maximize the comfort during operation.
4. Multiple engines for selection.
Technical Parameters of Diesel Forklift
| Model | Unit | CPCD10H | CPCD15H | CPCD18H |
| Power type | Diesel | |||
| Rated load | kg | 1000 | 1500 | 1800 |
| Load center distance | mm | 500 | ||
| Lift height | mm | 3000 | ||
| Free lift height | mm | 120 | ||
| Fork size L×W×T | mm | 920×100×35 | ||
| Minimum turning radius | mm | 1880 | 1995 | 1985 |
| Maximum travel speed /Full load | km/h | 14.6 | ||
| Maximum travel speed/ No load | km/h | 14.8 | ||
| Fork height at maximum lift (with backrest) | mm | 3930 | ||
| Standard Mast height | mm | 2010 | ||
| Front wheel | 6.50-10-10PR | |||
| Rear wheel | 5.00-8-10PR | |||
| Wheelbase | mm | 1400 | ||
| Front wheel/rear wheel | mm | 891/920 | ||
| Self weight/Without load | Kg | 2430 | 2790 | 2890 |
| Battery/ Voltage/capacity | V/Ah | 12/80 | ||
| Engine/ Model | C240NKFG-01 Isuzu,Japan | |||
| Engine/Rated output | kw/r.p.m | 34.3～36.5/2500 | ||
| Engine/ Rated torque | Nm/r.p.m | 137.7/1800 | ||
| Tire type (FR/RR) | Pneumatic | |||
| Number of wheels (FR/RR) | 2/2 | |||
Related Information
HS Code: 8427209000
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
